cable gland M16
Thermoplastic enclosure
Double-insulated
Long life
30 mm x 60 mm x 30 mm
Particularly suitable for sliding doors
small body
Individual coding
Coding level "High" according to ISO 14119
High level of contact reliability with low voltages and currents
Insensitive to soiling
Slot sealing plug included
8 actuating planes

SKU

4030661049717
Manufacturer code

101121963
Current, Thermal test current

10 A
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

slow action, positive break NC contact
Height, Sensor

85 mm
Length, Sensor

30 mm
Path, positive break travel

11 mm
Width, Sensor

30 mm
Electrical data, Cable section, maximum

1 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Force, Positive break force, minimum Force,

34 N
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 60947-5-1
EN ISO 14119
EN ISO 13849-1
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, Safety contacts

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
BG
Type of switch function

Opener (NC)
Electrical data, Terminal, Connector, Transmitter, General

IDC method of termination
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
EN IEC 60947-5-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661049717
SAP, product group

Initial
SAP, gross weight

95.000 g
SAP, net weight

95.000 g
Included in delivery, number and type, general

Slot cover for dust-proof covering of the opening not in use
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

250 VAC
Web Type

Product range
Coding, Coding level according to EN ISO 14119

High
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Safety contact

4 A
Movement, actuating speed, maximum

2 m/s
Current, Utilisation category AC-15, Safety contact VAC}

230 VAC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of electric connection

M 16 x 1.5
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting

Screws
Type of execution, mounting, Screws

2x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Height, permissible installation height above sea level, maximum

2000 m
Electrical data, Connector, allowed type of cable

flexible
Force, Latching force

5 N
Force, Positive break force per NC contact, minimum Force,

17 N
Note, General

This type termination (IDC) method enables simple connetion
The actuator is not available separately.
Note, Safety parameters, Fault exclusion

Can be used when fault exclusion for dangerous damage to the
Note, tightening torque, screw, housing cover

Torx T10
Number, Actuating directions

2
Number, cable glands

1
Safety parameters, B10d, Normally-closed contact (NC),

2000000 Operations
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, EN ISO 13849, Fault exclusion

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

c
Safety parameters, Performance Level, Fault exclusion

d
Temperature, storage and transport temperature,[generated product variant]

-30 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-30 °C
Time, Switching frequency

2000 /h
Torque, tightening torque, screw, housing cover, maximum

1 Nm
Torque, tightening torque, screw, housing cover, minimum

0.7 Nm
Selection (Yes/No), Traceparts

Yes
Material, actuator

Stainless steel
Voltage, Operating voltage, maximum

230 V

Manufacturer Schmersal
Need our help?

or call us at

An inquiry about AZ 17-02ZI B1

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

file-24954-bf15e5e5e96c2acc0c8288fa1814a1f8.pdf (PDF, 117.75 kB)

Cart

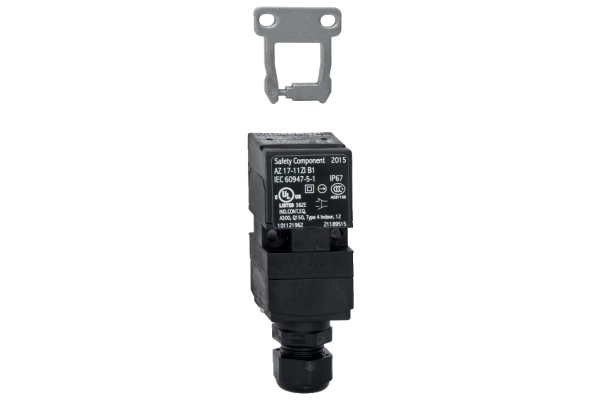

AZ 17-02ZI B1 Machine safety switch with separate actuator
