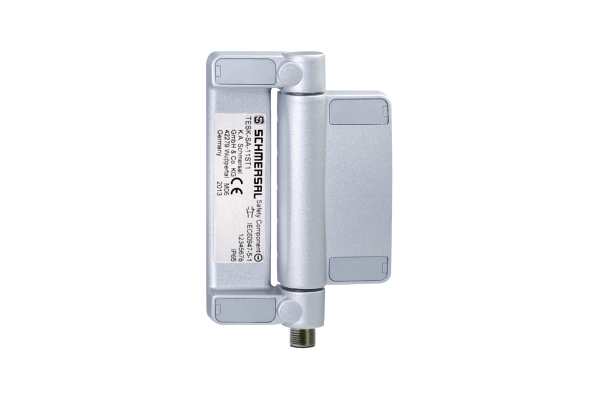

TESK-SA-12ST1 Machine safety switch for hinged guards

TESK-SA-12ST1
connector plug M12 bottom
with fixed switching angle
pre-set for front mounting
Standard hinge
Metal enclosure
  • SKU
    4030661435688
  • Manufacturer code
    103005747
  • Current, Thermal test current
    2.5 A
  • Current, Utilisation category AC-15
    2 A
  • Current, Utilisation category DC-13
    1 A
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Height, Sensor
    116 mm
  • Length, Sensor
    20 mm
  • Width, Sensor
    78 mm
  • Electrical data, Cable section, maximum
    1 mm²
  • Electrical data, Cable section, minimum
    0.5 mm²
  • Electrical data, Max. fuse rating
    2 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver-nickel alloy 10
  • Housing material
    Metal, zinc die-cast
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Number, Safety contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
  • Type of switch function
    NO contact, NC contact
  • Type of electric connection
    Connector M12
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
    EN IEC 60947-5-1
    BG-GS-ET-15
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661435688
  • SAP, product group
    Initial
  • SAP, gross weight
    329.130 g
  • SAP, net weight
    329.130 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +65 °C
  • Temperature, ambient temperature, maximum
    65 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Switching frequency
    1200 /h
  • Voltage, Rated impulse withstand voltage
    0.5 kV
  • Voltage, rated insulation voltage
    30 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), Traceparts
    Yes
  • Number, Auxiliary contacts
    1
  • Colour, housing
    Silver
  • Selection (Yes/No), Alignment aid
    Yes
  • Selection (Yes/No), Mounting outside
    Yes
  • Selection (Yes/No), CADENAS
    Yes

Product attachments

file-27349-814e9155415eae7540a319dee02017dc.pdf (PDF, 1.25 MB)
