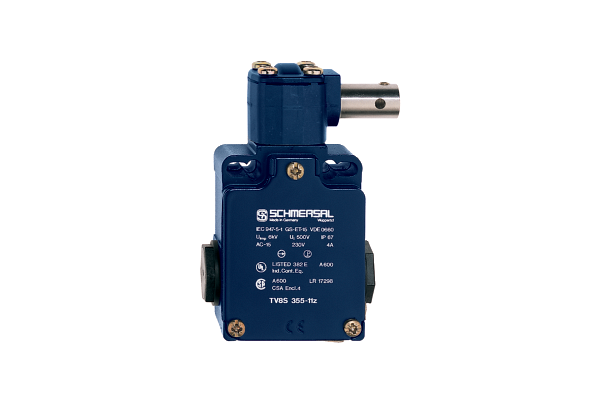

TV10S 355-02Z Machine safety switch for hinged guards
Manufacturer: Schmersal Code: 101117212 SKU: 4030661073453
2 cable entries M 20 x 1.5
1 Connector M12, 4-pole
Metal enclosure
Good resistance to oil and petroleum spirit
Actuator heads can be repositioned by 4 x 90°
66,7 mm x 107 mm x 65,3 mm
Actuator shaft can be turned 360°
1 Connector M12, 4-pole
Metal enclosure
Good resistance to oil and petroleum spirit
Actuator heads can be repositioned by 4 x 90°
66,7 mm x 107 mm x 65,3 mm
Actuator shaft can be turned 360°
- SKU4030661356594
- Manufacturer code101193647
- CAD, traceparts, product ID33-22052019-077558
- Current, Thermal test current10 A
- Current, Utilisation category AC-154 A
- Current, Utilisation category DC-134 A
- Type of Execution, IP Protection class, GeneralIP67
- Type of Execution, Mechanical life, minimum,1000000 Operations
- Switching principleSlow action
- Angle, Positive break angle7 °
- Height, Sensor107 mm
- Length, Sensor65.3 mm
- Width, Sensor66.7 mm
- Electrical data, Max. fuse rating6 A gG D-fuse
- Electrical data, Utilisation categoryDC-13
AC-15 - Material, contacts, electricalSilver
- Housing materialLight alloy die-casting
- Note, GeneralCaution! According to EN 60204-1, the versions with connecto
- Number, Safety contacts2
- PIM maintenance statusDischarge "Online catalog"
- PNV, standard, certificatesCCC
cULus - Type of switch functionOpener (NC)
- Type of electric connectionConnector M12
- Safety parameters, Mission time20 Year(s)
- Safety parameterEN ISO 13849-1
EN IEC 60947-5-1
BG-GS-ET-15 - SAP, basic quantity unitPiece
- SAP, EAN (European Article Number)4030661356594
- SAP, product groupInitial
- SAP, gross weight348.000 g
- SAP, net weight348.000 g
- Temperature, Ambient temperature[generated product variant]-25 ... +70 °C
- Temperature, ambient temperature, maximum70 °C
- Temperature, ambient temperature, minimum-25 °C
- Time, Switching frequency1000 /h
- Voltage, Rated impulse withstand voltage0.8 kV
- Voltage, rated insulation voltage50 V
- Voltage, Utilisation category AC-1550 VAC
- Voltage, Utilisation category DC-1324 VDC
- Web TypeProduct range
- Type of execution, Actuating elementOther
- Type of Execution, Connector enclosure, Side BFemale connector
- Mounting hole, Shaft8 mm
- Material, enclosure coatingpainted
- Tightening torque, Positive break torque0.60 Nm
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Schmersal
