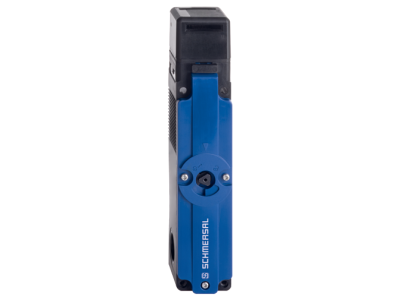

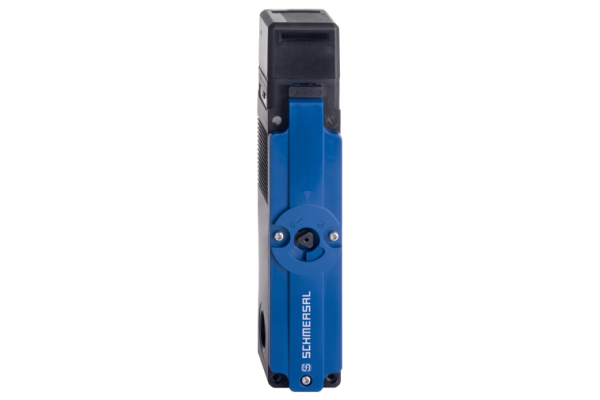

Thermoplastic enclosure
Eight approach levels thanks to rotating head
Individually coded version with
coding level "High" according to ISO 14119
Simple fitting, especially on 40 mm profiles

SKU

4030661551432
Manufacturer code

153032207
Coding, Coding level according to EN ISO 14119

High
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661551432
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

619.950 g
SAP, net weight

619.950 g
Web Type

Product range
Current, Thermal test current

5 A
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Safety contact

4 A
Type of Execution, Cable entry

3 x M20 x 1,5
Type of Execution, IP Protection class, General

IP67
IP65
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

slow action, positive break NC contact
Height, Sensor

204 mm
Length, Sensor

48 mm
Width, Sensor

40 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.25 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse to DIN EN 60269-1
Force, clamping force in accordance with EN ISO 14119

1500 N
Clamping force, maximum

1950 N
Force, Positive break force, minimum Force,

40 N
Material, contacts, electrical

Silver
Housing material

Thermoplastic, Polyamide PA 6 GF
Movement, actuating speed, maximum

0.3 m/s
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN ISO 14119
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Relative humidity

non-condensing
non-icing
Number, Actuating directions

2
Number, Safety contacts

4
PNV, standard, certificates

CCC
cULus
TÜV
Power, electrical consumption, maximum

8.5 W
Type of switch function

Opener (NC)
Electrical data, Terminal, Connector, Transmitter, General

Screw terminals
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

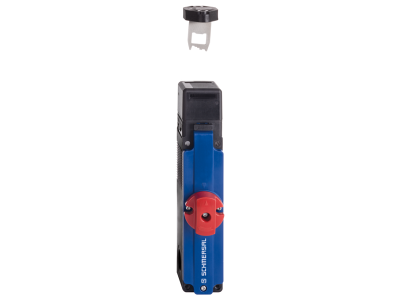

The actuator is included in the scope of delivery
Slot cover for dust-proof covering of the opening not in use
Temperature, Ambient temperature[generated product variant]

-25 ... +55 °C
Temperature, ambient temperature, maximum

55 °C
Temperature, ambient temperature, minimum

-25 °C
Time, Switching frequency

1000 /h
Time, duty cycle solenoid

100 %
Time, test pulse duration, maximum

5 ms
Time, test pulse interval, solenoid control, minimum

50 ms
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

300 V
Current, Utilisation category AC-15, Safety contact VAC}

230 VAC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Selection (Yes/No), Power to unlock

Yes
Path, positive break travel

10 mm
Note, applications

sliding safety guard
hinged safety guard
removable guard
Selection (Yes/No), Traceparts

Yes
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of Execution, Degree of pollution IEC/EN 60664-1

2
Type of execution, mounting

Screws
Type of execution, mounting, Screws

4x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Type of Execution, Protection class (Operating resource)

2
Electrical data, Connector, allowed type of cable

flexible
solid single-wire
solid multi-wire
Force, Positive break force per NC contact, minimum Force,

10 N
Note, Safety parameters, B10d, Normally-open contact (NO)

at 10% I_e and ohmic load
Note, Safety parameters, Fault exclusion

Can be used when fault exclusion for dangerous damage to the
Note, tightening torque, screw, housing cover

Torx T10
Note, Choice (Yes/No), Manual release

For maintenance, installation, etc.
On the cover side
By means of M5 triangular key
Safety parameters, B10d, Normally-closed contact (NC),

2000000 Operations
Safety parameters, B10d, Normally-open contact (NO)

1000000 Operations
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, EN ISO 13849, Fault exclusion

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

c
Safety parameters, Performance Level, Fault exclusion

d
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Torque, tightening torque, screw, housing cover, maximum

0.5 Nm
Torque, tightening torque, screw, housing cover, minimum

0.5 Nm
Selection (Yes/No), Manual release

Yes
Selection (Yes/No), CADENAS

Yes
Type of application, Relative humidity, maximum

93 %
Note, Mechanical lifetime

from device version V2 (see type plate)
Selection (Yes/No), EPLAN

Yes
Voltage, Rated control voltage

24 VDC
Force, latching force, approx.

50 N

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
