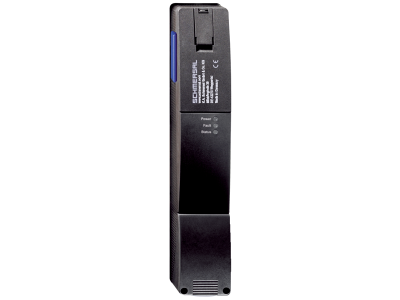

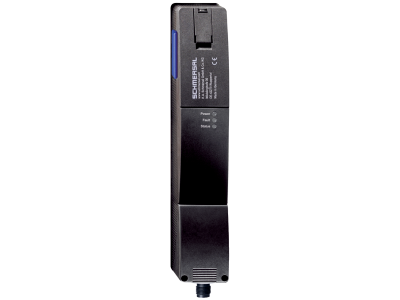

AZM201Z-ST-T-1P2PW-2965-2 Machine safety solenoid interlock

AZM201Z-ST-T-1P2PW-2965-2
Thermoplastic enclosure
Max. length of the sensor chain 200 m
Self-monitoring series-wiring
Coding in accordance to ISO 14119 by using RFID-Technology
3 LEDs to show operating conditions
Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
Suitable for hinged and sliding guards
Intelligent diagnosis
Manual release
Protection class IP66, IP67
High holding force 2000
symmetrical construction form, assembly on 40mm profiles
OSSD safety outputs
Emergency exit
Emergency release suitable for retrofitting
  • SKU
    4030661513836
  • Manufacturer code
    103025213
  • Coding, Coding level according to EN ISO 14119
    Low
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661513836
  • SAP, product group
    Initial
  • SAP, gross weight
    619.290 g
  • SAP, net weight
    619.290 g
  • Web Type
    Product range
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Height, permissible installation height above sea level, maximum
    2000 m
  • Height, Sensor
    220 mm
  • Length, Sensor
    50 mm
  • Width, Sensor
    40 mm
  • Force, clamping force in accordance with EN ISO 14119
    2000 N
  • Clamping force, maximum
    2600 N
  • Force, Latching force
    30 N
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Movement, actuating speed, maximum
    0.2 m/s
  • Standard, standards
    EN ISO 13849-1
    EN ISO 14119
    EN IEC 61508
    EN IEC 60947-5-3
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, Safety contacts
    2
  • PNV, standard, certificates
    cULus
    TÜV
    FCC
    IC
    ANATEL
  • Electrical data, Terminal, Connector, Transmitter, General
    Connector M23, 8+1-pole
  • Safety parameter
    EN ISO 13849-1
    EN IEC 61508
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
    Triangular key for AZM 201
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, duty cycle solenoid
    100 %
  • Time, test pulse duration, maximum
    1 ms
  • Time, test pulse interval, solenoid control, minimum
    40 ms
  • Voltage, Rated impulse withstand voltage
    0.8 kV
  • Voltage, rated insulation voltage
    32 VDC
  • Selection (Yes/No), Power to unlock
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Current, Required rated short-circuit current to EN 60947-5-1
    100 A
  • Type of execution, mounting, Screws
    2x M6
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Type of Execution, Protection class (Operating resource)
    3
  • Note, General
    As long as the actuating unit remains inserted in the soleno
  • Note, tightening torque, screw, housing cover
    Torx T10
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +85 °C
  • Temperature, storage and transport temperature, maximum
    85 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Torque, tightening torque, screw, housing cover, maximum
    1.0 Nm
  • Torque, tightening torque, screw, housing cover, minimum
    0.7 Nm
  • Selection (Yes/No), Manual release
    Yes
  • Coding, general information
    Universal coding
  • Type of Execution, IP Protection class, General  [generated product range]
    IP66, IP67
  • Standard, standards [generated product range]
    EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
  • Type of application, Relative humidity, maximum
    93 %
  • Current, consumption at 24V, magnet control
    10 mA
  • Current, consumption at 24V, safety inputs
    5 mA
  • Current, consumption, solenoid ON, average
    200 mA
  • Current, consumption, solenoid ON, peak
    700 mA / 100 ms
  • Current, Residual current, Fail-safe output, maximum
    0.5 mA
  • Current, Rated operating current
    1200 mA
  • Current, Rated operating current, Safe digital outputs
    250 mA
  • Current, Utilisation category DC-13, Diagnostic output
    0.05 A
  • Current, Utilisation category DC-13, Fail-safe digital output
    0.25 A
  • Type of Execution, for degree of pollution VDE 0100
    3
  • Type of Execution, Overvoltage category VDE 0100
    3
  • Type of execution, switching output, diagnostic output, electric
    short-circuit proof, p-type
  • Type of execution, switching output, fail-safe output, electric
    short-circuit proof, p-type
  • Lenght, sensor chain, maximum
    200 m
  • Electrical data, Classification, ZVEI CB24I: Sink, Solenoid control (inputs)
    C0
  • Electrical data, Classification, ZVEI CB24I: Sink, Safety digital inputs
    C1
  • Electrical data, Classification, ZVEI CB24I: Sink, fail-safe digital outputs
    C1
    C2
  • Electrical data, Classification, ZVEI CB24I: Source, Solenoid control (inputs)
    C1
    C2
    C3
  • Electrical data, Classification, ZVEI CB24I: Source, Safety digital inputs
    C1
    C2
    C3
  • Electrical data, Classification, ZVEI CB24I: Source, fail-safe digital outputs
    C2
  • Electrical data, Connector 1, Pin assignment, PIN 1
    A1 Supply voltage UB
  • Electrical data, Connector 1, Pin assignment, PIN 2
    Key button to +24V-X1-X2
  • Electrical data, Connector 1, Pin assignment, PIN 3
    A2 GND
  • Electrical data, Connector 1, Pin assignment, PIN 4
    Y1 Safety output 1
  • Electrical data, Connector 1, Pin assignment, PIN 5
    OUT Diagnostic output
  • Electrical data, Connector 1, Pin assignment, PIN 6
    white LED
  • Electrical data, Connector 1, Pin assignment, PIN 7
    Y2 Safety output 2
  • Electrical data, Connector 1, Pin assignment, PIN 8
    IN Solenoid control
  • Electrical data, Connector 1, Pin assignment, PIN 9
    Not used
  • Electrical data, Designation device connection, Diagnostic outputs
    OUT
  • Electrical data, Designation device connection, Solenoid control
    IN
  • Electrical data, Designation device connection, Safety inputs
    X1 and X2
  • Electrical data, Designation device connection, Safety outputs
    Y1 and Y2
  • Electrical data, Fuse rating, General
    short-circuit proof, p-type
  • Elektrische Daten, Absicherung des Diagnoseausganges, Allgemein
    short-circuit proof, p-type
  • Electrical data, Inputs, Switching thresholds for magnet inputs
    -3 V … 5 V (Low)
    15 V … 30 V (High)
  • Electrical data, inputs, switching thresholds for fail-safe inputs
    −3 V … 5 V (Low)
    15 V … 30 V (High)
  • Note, LED switching conditions display
    Supply voltage UB: LED green
    Operating condition: LED green
    Error / functional defect: LED red
  • Notes, length, sensor chain
    Cable length and cross-section change the voltage drop depen
  • Note, series connection, sensors
    Unlimited number of devices, oberserve external line fusing,
  • Note, operating voltage, DC
    stabilised PELV power supply
  • Recommendation, actuator
    AZ/AZM201-B1
    AZ/AZM201-B30
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 150 Hz, amplitude 0.35 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Time, Duration of risk, maximum
    200 ms
  • Time, Switching frequency, maximum
    1 Hz
  • Time, test pulse duration, safety, digital output, maximum
    0.5 ms
  • Time, test pulse interval, safety digital input, minimum
    100 ms
  • Time, test pulse interval, safety digital output, typical
    1000 ms
  • Time, Time to readiness, maximum
    4000 ms
  • Tolerance, operating voltage, DC, maximum
    10 %
  • Tolerance, operating voltage, DC, minimum
    -15 %
  • Voltage, voltage drop Ud, maximum
    2 V
  • Voltage, Operating voltage, maximum
    26.4 VDC
  • Voltage, Operating voltage, minimum
    20.4 VDC
  • Voltage, rated operating voltage
    24 VDC
  • Voltage, type
    DC
  • Voltage, Utilisation category DC-13, Diagnostic output
    24 VDC
  • Voltage, Utilisation category DC-13, Fail-safe digital output
    24 VDC
  • Selection (Yes/No), Short-circuit recognition
    Yes
  • Selection (Yes/No), Safety functions
    Yes
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Selection (Yes/No), Short circuit detection
    Yes
  • Current, Rated operating current, diagnostic output
    50 mA
  • Note, clamping force in accordance with EN ISO 14119
    1,000 N when used with the AZ/AZM201-B30 actuator, for indoo
  • Note, clamping force, maximum
    1,300 N when used with the AZ/AZM201-B30 actuator, for indoo
  • Selection (Yes/No), EPLAN
    Yes
  • Safety parameters, Coding levels according to EN ISO 14119  [generated product range]
    I1 variant: High
    I2 variant: High
    Standard coded v
  • Current, operation current, serial diagnostic SD[generated product range]
    150 mA
  • Electrical data, Fuse rating, Current, maximum
    3 A
  • Electrical data, Inputs, Switching thresholds for magnet inputs  [generated product range]
    -3 V … 5 V (Low)
    15 V … 30 V (High)
  • Electrical data, inputs, switching thresholds for fail-safe inputs [generated product range]
    −3 V … 5 V (Low)
    15 V … 30 V (High)
  • Electrical data, wiring capacity, serial diagnostic SD, maximum[generated product range]
    50 nF
  • Power, transmit, RFID, maximum
    -6 dB/m
  • Time, frequency band, RFID
    125 kHz
  • Time, Reaction, Actuator, maximum
    100 ms
  • Time, Reaction, Inputs maximum
    1.5 ms
  • Torque, tightening torque, screw, mounting, maximum
    8 Nm
  • Selection (Yes/No), Freely assignable LED
    Yes
  • Selection (Yes/No), Idle assignable pushbutton
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
