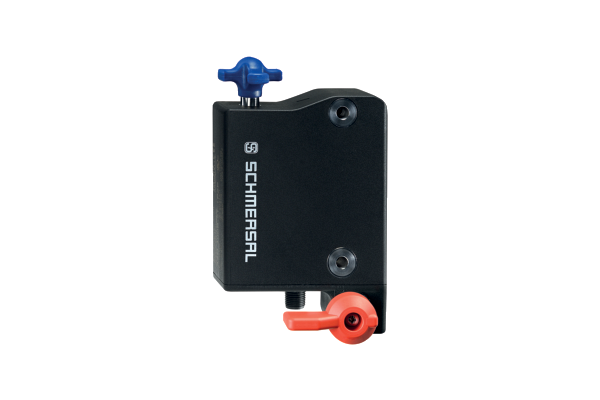

AZM300B-ST-1P2P-N Machine safety solenoid interlock

AZM300B-ST-1P2P-N
Universal coding with RFID technology
Connector M12, 8-pole
Power to unlock
Actuator monitored
Diagnostic output
Emergency release
hygienic design
Protection class IP 69
Suitable for mounting to profile systems
Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
3 different directions of actuation
Compact design
3 LEDs to show operating conditions
Suitable for hinged and sliding guards
Series-wiring
Manual release
  • SKU
    4030661451091
  • Manufacturer code
    103006867
  • Coding, Coding level according to EN ISO 14119
    Low
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661451091
  • SAP, product group
    Initial
  • SAP, gross weight
    650.000 g
  • SAP, net weight
    650.000 g
  • Web Type
    Product range
  • Type of Execution, IP Protection class, General
    IP67
    IP66
    IP69
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Height, permissible installation height above sea level, maximum
    2000 m
  • Height, Sensor
    55 mm
  • Length, Sensor
    146 mm
  • Width, Sensor
    87.5 mm
  • Force, clamping force in accordance with EN ISO 14119
    1150 N
  • Clamping force, maximum
    1500 N
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Standard, standards
    EN ISO 13849-1
    EN ISO 14119
    EN IEC 61508
    EN IEC 60947-5-3
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, Actuating directions
    3
  • PNV, standard, certificates
    cULus
    TÜV
    ECOLAB
    FCC
    IC
    ANATEL
  • Electrical data, Terminal, Connector, Transmitter, General
    Connector M12, 8-pole, A-coded
  • Safety parameter
    EN ISO 13849-1
    EN IEC 61508
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    +0 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    0 °C
  • Time, duty cycle solenoid
    100 %
  • Time, test pulse duration, maximum
    1 ms
  • Time, test pulse interval, solenoid control, minimum
    40 ms
  • Voltage, Rated impulse withstand voltage
    0.8 kV
  • Voltage, rated insulation voltage
    32 VDC
  • Selection (Yes/No), Power to unlock
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Current, Required rated short-circuit current to EN 60947-5-1
    100 A
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    3
  • Type of execution, mounting, Screws
    2x M6
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Type of Execution, Protection class (Operating resource)
    3
  • Note, General
    As long as the actuating unit remains inserted in the soleno
    For doors that are flush with the door frame, the optional m
    For glass and Makrolon doors, the optional mounting kit MS-A
  • Temperature, storage and transport temperature,[generated product variant]
    -10 ... +90 °C
  • Temperature, storage and transport temperature, maximum
    90 °C
  • Temperature, storage and transport temperature, minimum
    -10 °C
  • Selection (Yes/No), CADENAS
    Yes
  • Coding, general information
    Universal coding
  • Type of Execution, IP Protection class, General  [generated product range]
    IP66, IP67, IP69
  • Standard, standards [generated product range]
    EN ISO 13849-1, EN ISO 14119, IEC 60947-5-3, IEC 61508
  • Selection (Yes/No), Emergency release
    Yes
  • Type of application, Relative humidity, maximum
    93 %
  • Current, consumption at 24V, magnet control
    10 mA
  • Current, consumption at 24V, safety inputs
    5 mA
  • Current, consumption, solenoid ON, average
    200 mA
  • Current, consumption, solenoid ON, peak
    350 mA / 200 ms
  • Current, Residual current, Fail-safe output, maximum
    0.5 mA
  • Current, Utilisation category DC-13, Diagnostic output
    0.05 A
  • Current, Utilisation category DC-13, Fail-safe digital output
    0.25 A
  • Type of Execution, Overvoltage category VDE 0100
    3
  • Type of execution, switching output, diagnostic output, electric
    short-circuit proof, p-type
  • Type of execution, switching output, fail-safe output, electric
    short-circuit proof, p-type
  • Lenght, sensor chain, maximum
    200 m
  • Area, ensured switch distance OFF Sar
    20 mm
  • Area, ensured switch distance ON Sao
    1 mm
  • Electrical data, Classification, ZVEI CB24I: Sink, Solenoid control (inputs)
    C0
  • Electrical data, Classification, ZVEI CB24I: Sink, Safety digital inputs
    C1
  • Electrical data, Classification, ZVEI CB24I: Sink, fail-safe digital outputs
    C1
    C2
  • Electrical data, Classification, ZVEI CB24I: Source, Solenoid control (inputs)
    C1
    C2
    C3
  • Electrical data, Classification, ZVEI CB24I: Source, Safety digital inputs
    C1
    C2
    C3
  • Electrical data, Classification, ZVEI CB24I: Source, fail-safe digital outputs
    C2
  • Electrical data, Connector 1, Pin assignment, PIN 1
    A1 Supply voltage UB
  • Electrical data, Connector 1, Pin assignment, PIN 2
    X1 Safety input 1
  • Electrical data, Connector 1, Pin assignment, PIN 3
    A2 GND
  • Electrical data, Connector 1, Pin assignment, PIN 4
    Y1 Safety output 1
  • Electrical data, Connector 1, Pin assignment, PIN 5
    OUT Diagnostic output
  • Electrical data, Connector 1, Pin assignment, PIN 6
    X2 Safety input 2
  • Electrical data, Connector 1, Pin assignment, PIN 7
    Y2 Safety output 2
  • Electrical data, Connector 1, Pin assignment, PIN 8
    IN Solenoid control
  • Electrical data, Designation device connection, Diagnostic outputs
    OUT
  • Electrical data, Designation device connection, Solenoid control
    IN
  • Electrical data, Designation device connection, Safety inputs
    X1 and X2
  • Electrical data, Designation device connection, Safety outputs
    Y1 and Y2
  • Electrical data, External wiring and device fuse rating
    2 A gG
  • Electrical data, Inputs, Switching thresholds for magnet inputs
    -3 V … 5 V (Low)
    15 V … 30 V (High)
  • Electrical data, inputs, switching thresholds for fail-safe inputs
    −3 V … 5 V (Low)
    15 V … 30 V (High)
  • Note, Mechanical lifetime
    When using as door stop: ≥ 50.000 operations (door mass ≤ 5
  • Note, LED switching conditions display
    Supply voltage UB: LED green
    Operating condition: LED green
    Error / functional defect: LED red
  • Notes, length, sensor chain
    Cable length and cross-section change the voltage drop depen
  • Note, series connection, sensors
    Unlimited number of devices, oberserve external line fusing,
  • Note, operating voltage, DC
    stabilised PELV power supply
  • Recommendation, actuator
    AZ/AZM300-B1
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 150 Hz, amplitude 0.35 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Time, Duration of risk, maximum
    200 ms
  • Time, Switching frequency, maximum
    0.5 Hz
  • Time, test pulse duration, safety, digital output, maximum
    0.5 ms
  • Time, test pulse interval, safety digital input, minimum
    100 ms
  • Time, test pulse interval, safety digital output, typical
    1000 ms
  • Time, Time to readiness, maximum
    5000 ms
  • Tolerance, operating voltage, DC, maximum
    10 %
  • Tolerance, operating voltage, DC, minimum
    -15 %
  • Voltage, voltage drop Ud, maximum
    2 V
  • Voltage, Operating voltage, maximum
    26.4 VDC
  • Voltage, Operating voltage, minimum
    20.4 VDC
  • Voltage, rated operating voltage
    24 VDC
  • Voltage, type
    DC
  • Voltage, Utilisation category DC-13, Diagnostic output
    24 VDC
  • Voltage, Utilisation category DC-13, Fail-safe digital output
    24 VDC
  • Selection (Yes/No), Short-circuit recognition
    Yes
  • Selection (Yes/No), latching
    Yes
  • Selection (Yes/No), Safety functions
    Yes
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Selection (Yes/No), Series-wiring
    Yes
  • Selection (Yes/No), Short circuit detection
    Yes
  • Selection (Yes/No), Actuator monitored
    Yes
  • Selection (Yes/No), EPLAN
    Yes
  • Safety parameters, Coding levels according to EN ISO 14119  [generated product range]
    I1 variant: High
    I2 variant: High
    Standard coded v
  • Current, operation current, serial diagnostic SD[generated product range]
    150 mA
  • Current, Utilisation category DC-12, Diagnostic output
    0.05 A
  • Current, Utilisation category DC-12, Fail-safe digital output
    0.25 A
  • Range, switch distance S, typical
    2 mm
  • Electrical data, Fuse rating, Current, maximum
    2 A
  • Electrical data, Inputs, Switching thresholds for magnet inputs  [generated product range]
    -3 V … 5 V (Low)
    15 V … 30 V (High)
  • Electrical data, inputs, switching thresholds for fail-safe inputs [generated product range]
    −3 V … 5 V (Low)
    15 V … 30 V (High)
  • Electrical data, Utilisation category DC-12, Diagnostic output [generated product variant]
    24 VDC / 0.05 A
  • Electrical data, wiring capacity, serial diagnostic SD, maximum[generated product range]
    50 nF
  • Force, Latching force, adjustable, position 1
    25 N
  • Force, Latching force, adjustable, position 2
    50 N
  • Number, fail-safe digital outputs
    2
  • Power, transmit, RFID, maximum
    -6 dB/m
  • Time, frequency band, RFID
    125 kHz
  • Time, Reaction, Actuator, maximum
    100 ms
  • Time, Reaction, Inputs maximum
    1.5 ms
  • Torque, tightening torque, screw, mounting[generated product variant]
    6 ... 7 Nm
  • Torque, tightening torque, screw, mounting, maximum
    7 Nm
  • Torque, tightening torque, screw, mounting, minimum
    6 Nm
  • Voltage, Utilisation category DC-12, Diagnostic output
    24 VDC
  • Voltage, Utilisation category DC-12, Fail-safe digital output
    24 VDC

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
