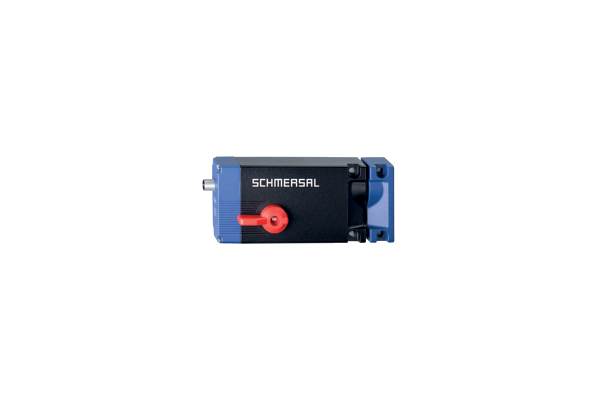

Individual coding with RFID technology
Coding level "High" according to ISO 14119
Connector M12, 8-pole
Guard locking monitored
1 Diagnostic output
Emergency exit
Bistable, motor-driven system
Clamping force 10.000
Release possible against lateral forces up to 300 N
PL e
cat. 4
SIL 3 for interlocking and guard locking function
Two-channel input signal of the guard locking function
Operation on P/P- and P/N-switching outputs
High tolerance to door misalignment

SKU

4030661472607
Manufacturer code

103003840
Coding, Coding level according to EN ISO 14119

High
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661472607
SAP, product group

Initial
SAP, gross weight

846.000 g
SAP, net weight

846.000 g
Web Type

Product range
Type of Execution, IP Protection class, General

IP67
IP66
Type of Execution, Mechanical life, minimum,

1000000 Operations
Height, permissible installation height above sea level, maximum

2000 m

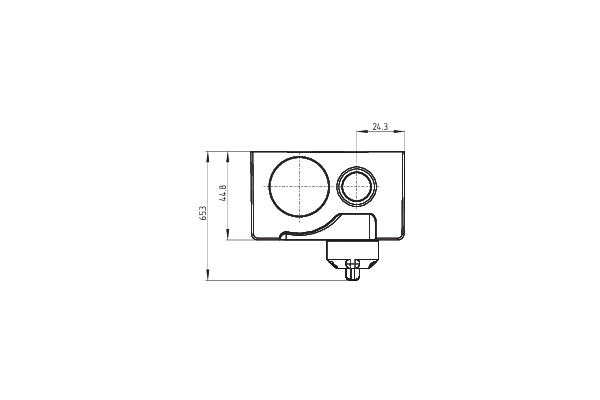

Height, Sensor

156.7 mm
Length, Sensor

65.3 mm
Width, Sensor

77.8 mm
Force, clamping force in accordance with EN ISO 14119

10000 N
Clamping force, maximum

13000 N
Housing material

Light alloy die-casting
Standard, standards

EN ISO 13849-1
EN ISO 14119
EN IEC 61508
EN IEC 60947-5-3
Note, Relative humidity

non-condensing
non-icing
Number, Safety contacts

2
PNV, standard, certificates

cULus
TÜV
FCC
IC
ANATEL
Electrical data, Terminal, Connector, Transmitter, General

Connector M12, 8-pole, A-coded
Safety parameter

EN ISO 13849-1
EN IEC 61508
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-20 ... +55 °C
Temperature, ambient temperature, maximum

55 °C
Temperature, ambient temperature, minimum

-20 °C
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Selection (Yes/No), Traceparts

Yes
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Type of execution, mounting, Screws

2x M6
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of Execution, Protection class (Operating resource)

3
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Selection (Yes/No), CADENAS

Yes
Coding, general information

Individual coding
Selection (Yes/No), Emergency exit

Yes
Type of application, Relative humidity, maximum

93 %
Current, Residual current, Fail-safe output, maximum

0.5 mA
Current, Utilisation category DC-13, Diagnostic output

0.05 A
Current, Utilisation category DC-13, Fail-safe digital output

0.25 A
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, Overvoltage category VDE 0100

3
Type of execution, switching output, diagnostic output, electric

short-circuit proof, p-type
Type of execution, switching output, fail-safe output, electric

short-circuit proof, p-type
Electrical data, Classification, ZVEI CB24I: Sink, fail-safe digital outputs

C1
C2
Electrical data, Classification, ZVEI CB24I: Source, fail-safe digital outputs

C2
Electrical data, Connector 1, Pin assignment, PIN 1

A1 Supply voltage UB
Electrical data, Connector 1, Pin assignment, PIN 2

X2 Safety input 2
Electrical data, Connector 1, Pin assignment, PIN 3

A2 GND
Electrical data, Connector 1, Pin assignment, PIN 4

Y1 Safety output 1
Electrical data, Connector 1, Pin assignment, PIN 5

OUT Diagnostic output
Electrical data, Connector 1, Pin assignment, PIN 6

E3 Control input 3
Electrical data, Connector 1, Pin assignment, PIN 7

Y2 Safety output 2
Electrical data, Connector 1, Pin assignment, PIN 8

E2 Control input 2
Electrical data, Designation device connection, Diagnostic outputs

OUT
Electrical data, Designation device connection, Safety outputs

Y1 and Y2
Electrical data, External wiring and device fuse rating

2 A gG
Note, Mechanical lifetime

Which have a lateral force Ftrans = 100 N: 100.000 operatio
Note, LED switching conditions display

Supply voltage UB: LED green
Operating condition: LED green
Error / functional defect: LED red
Note, operating voltage, DC

stabilised PELV power supply
Recommendation, actuator

AZM400-B1
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Time, Switching frequency, maximum

0.3 Hz
Time, test pulse duration, safety, digital output, maximum

0.5 ms
Time, test pulse interval, safety digital output, typical

1000 ms
Time, Time to readiness, maximum

1500 ms
Tolerance, operating voltage, DC, maximum

10 %
Tolerance, operating voltage, DC, minimum

-15 %
Voltage, voltage drop Ud, maximum

2 V
Voltage, rated operating voltage

24 VDC
Voltage, type

DC
Voltage, Utilisation category DC-13, Diagnostic output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Short circuit detection

Yes
Selection (Yes/No), EPLAN

Yes
Current, Utilisation category DC-12, Diagnostic output

0.05 A
Current, Utilisation category DC-12, Fail-safe digital output

0.25 A
Electrical data, Fuse rating, Current, maximum

2 A
Electrical data, Utilisation category DC-12, Diagnostic output [generated product variant]

24 VDC / 0.05 A
Power, transmit, RFID, maximum

-6 dB/m
Time, frequency band, RFID

125 kHz
Time, Reaction, Actuator, maximum

100 ms
Voltage, Utilisation category DC-12, Diagnostic output

24 VDC
Voltage, Utilisation category DC-12, Fail-safe digital output

24 VDC
Type of Execution, Interlocking principle

bistable
Distance, minimum distance between devices

30 mm
Distance, interlock to actuator, maximum

7 mm
Distance, interlock to actuator, minimum

1 mm
Force, Lateral force, Bolt return, maximal

300 N
Note, Type of execution, mounting, Screws

Property class min. 10.9
Note, Diagnostic outputs

The diagnostic output are not safety relevant outputs!
Note, Force, Lateral Force, Bolt return

Does not apply to emergency exit, Bowden cable and manual re
Number, Diagnostic signals

1
Time, cycle, minimal average (with continuous operation)

20 s
Time, Open / close cycle, minimum

3
Tightening torque, tightening torque, screw

8 Nm
Voltage, rated operating voltage

24 VDC
Voltage, rated operating voltage, safe digital outputs

24 VDC
