Power to lock
Guard locking monitored
Permanent magnet

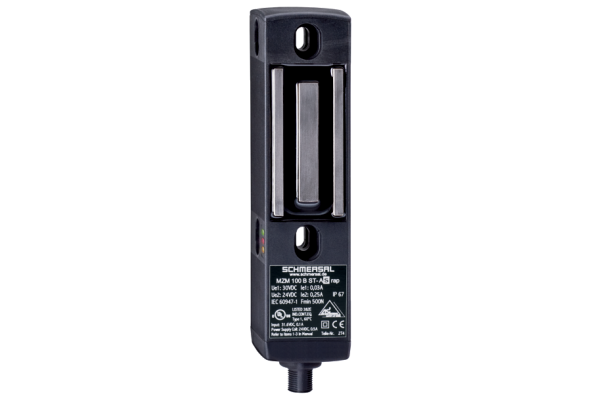

Solenoid interlock
Thermoplastic enclosure
Integrated AS-Interface
40 mm x 179 mm x 40 mm
Solenoid interlocks with innovating and unique operating principle
Electronic contact-free, coded system
3 LEDs to show operating conditions
Automatic latching
Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
Intelligent diagnosis

SKU

4030661383217
Manufacturer code

101209553
Coding, Coding level according to EN ISO 14119

Low
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661383217
SAP, product group

Initial
SAP, gross weight

628.500 g
SAP, net weight

628.500 g
Web Type

Product range
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Height, Sensor

179 mm
Length, Sensor

40 mm
Width, Sensor

40 mm
Housing material

Glass-fibre, reinforced thermoplastic
Standard, standards

EN ISO 13849-1
EN ISO 14119
EN IEC 61508
EN IEC 60947-5-3
EN IEC 62026-2
Note, Relative humidity

non-condensing
non-icing
PNV, standard, certificates

cULus
TÜV
UKCA
ASi-SaW
Electrical data, Terminal, Connector, Transmitter, General

Connector plug M12, 4-pole, (A-coding)
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN IEC 61508
EN IEC 60947-5-3
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +55 °C
Temperature, ambient temperature, maximum

55 °C
Temperature, ambient temperature, minimum

-25 °C
Time, duty cycle solenoid

100 %
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Selection (Yes/No), Power to lock

Yes
Force, Latching force, maximum

100 N
Force, Latching force, minimum

30 N
Selection (Yes/No), Traceparts

Yes
CAD, traceparts, product ID

69-05102007-016632
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of Execution, Protection class (Operating resource)

3
Note, General

Interlocks with the power to lock principle may only be used
As long as the actuating unit remains inserted in the soleno
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Performance Level,

e
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Coding, general information

Universal coding
Type of application, Relative humidity [generated produtct variant]

30 ... 95 %
Type of application, Relative humidity, maximum

95 %
Type of application, Relative humidity, minimum

30 %
Type of Execution, Overvoltage category VDE 0100

3
Force, Clamping force, Guaranteed

500 N
Force, Clamping force, Typically

750 N
Note, Mechanical lifetime

Actuating speed ≤ 0.5 m/s
Operations for door weights ≤ 5 kg
Note, LED switching conditions display

(1) LED green-red (AS-i Duo LED): Supply voltage / Communica
(3) LED red: Internal device error
(2) LED yellow: Device condition
Recommendation, actuator

MZM 100-B1.1
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Time, Duration of risk, maximum

150 ms
Time, Reaction, maximum

150 ms
Time, Time to readiness, maximum

4000 ms
Selection (Yes/No), latching

Yes
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Current, consumption, AS-i, maximum

100 mA
Current, Consumption, External auxiliary voltage (AUX)

600 mA
Electrical Data, Inputs, AS-i, Channel 1

Data bits DI 0 / DI 1 = dynamic code transmission
Electrical Data, Inputs, AS-i, Channel 2

Data bits DI 2 / DI 3 = dynamic code transmission
Electrical Data, AS-i, Input module address

0
Electrical data, AS-i, Parameter bits, P0

Actuator in
Electrical data, AS-i, Parameter bits, P1

Solenoid interlock locked
Electrical data, AS-i, Parameter bits, P2

Auxiliary voltage in
Electrical data, AS-i, Parameter bits, P3

Device error (fault detected)
Electrical data, AS-i, Profile

S-7.B.F.E
Electrical Data, AS-i, Specification

Safety-Slave
Electrical data, AS-i, Version

V 2.1
Electrical data, Connector, AS-i, PIN 1

AS-i +
Electrical data, Connector, AS-i, PIN 2

Aux - (P)
Electrical data, Connector, AS-i, PIN 3

AS-Interface -
Electrical data, Connector, AS-i, PIN 4

Aux + (P)
Electrical Data, Device protection, AS-i

Internal short-circuit proof
Elektrische Daten, Absicherung der Hilfspannung (AUX), Strom, maximum

4 A
Electrical data, Outputs, AS-i, DO 0

Solenoid control
Electrical data, Outputs, AS-i, DO 1

For the variable setting of the latching force
Electrical data, Outputs, AS-i, DO 2

For the variable setting of the latching force
Electrical data, Outputs, AS-i, DO 3

For the variable setting of the latching force
Note, Electrical data, AS-i, Input module address

Preset to address 0, can be changed through AS-interface bus
Note, Electrical data, AS-i, Parameter bits

Set the parameter outputs to "1111" (0xF)
Note, operating voltage, AS-i

Protection against polarity reversal
Note, operating voltage, auxiliary voltage

stabilised PELV power supply
Note, rated operating voltage, ASi

Protection against polarity reversal
Review, Coding, AS-i, ID-Code

0xB
Review, Coding, AS-i, ID-Code1

0xF
Review, Coding, AS-i, ID-Code2

0xE
Review, Coding, AS-i, IO-Code

0x7
Safety values, PFD value

0.000000005 /h
Safety parameters, Safety Integrity Level (SIL)

3
Tolerance, operating voltage, auxiliary voltage, maximum

10 %
Tolerance, operating voltage, auxiliary voltage, minimum

-15 %
Voltage, Operating voltage, AS-i, maximum

31.6 VDC
Voltage, Operating voltage, AS-i, minimum

26.5 VDC
Voltage, rated operating voltage, ASi, maximum

31.6 VDC
Voltage, rated operating voltage, ASi, minimum

26.5 VDC
Voltage, Rated operating voltage, Auxiliary voltage (AUX)

24 VDC -15% / +10% (stabilised PELV)
Voltage, rated operating voltage, auxiliary voltage

24 VDC
Voltage, type, ASi

DC
Voltage, type, auxiliary voltage

DC
