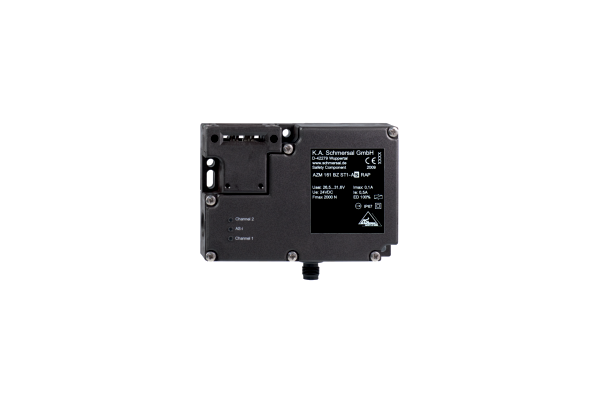

Solenoid supply AUS AS interface
Guard locking monitored
Manual release
Solenoid interlock
Thermoplastic enclosure
High holding force 2000
130 mm x 90 mm x 30 mm
Interlock with protection against incorrect locking.
Double-insulated
Long life
Integrated AS-Interface

SKU

4030661396507
Manufacturer code

101209107
Coding, Coding level according to EN ISO 14119

Low
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661396507
SAP, product group

Initial
SAP, gross weight

460.000 g
SAP, net weight

460.000 g
Web Type

Product range
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Height, permissible installation height above sea level, maximum

2000 m
Height, Sensor

90 mm
Length, Sensor

30 mm
Width, Sensor

130 mm
Force, clamping force in accordance with EN ISO 14119

2000 N
Clamping force, maximum

2600 N
Force, Latching force

30 N
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Movement, actuating speed, maximum

2 m/s
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 61508
EN IEC 62026-2
Note, Relative humidity

non-condensing
non-icing
Number, Actuating directions

3
PNV, standard, certificates

cULus
TÜV
ASi-SaW
Electrical data, Terminal, Connector, Transmitter, General

Connector plug M12, 4-pole, (A-coding)
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
EN IEC 61508
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Time, Switching frequency

1000 /h
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Selection (Yes/No), Power to unlock

Yes
Note, applications

sliding safety guard
hinged safety guard
removable guard
Selection (Yes/No), Traceparts

Yes
CAD, traceparts, product ID

33-22052019-077196
Type of execution, mounting

Screws
Type of execution, mounting, Screws

3x M6
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Type of Execution, Protection class (Operating resource)

2
Note, General

Interlocks with the power to lock principle may only be used
Note, Safety parameters, Fault exclusion

Can be used when fault exclusion for dangerous damage to the
Note, Choice (Yes/No), Manual release

For manual release using M5 triangular key, available as acc
For maintenance, installation, etc.
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, EN ISO 13849, Fault exclusion

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

c
Safety parameters, Performance Level, Fault exclusion

d
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Selection (Yes/No), Manual release

Yes
Tolerance, Actuating play in direction of actuation

5.5 mm
Type of application, Relative humidity [generated produtct variant]

30 ... 95 %
Type of application, Relative humidity, maximum

95 %
Type of application, Relative humidity, minimum

30 %
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, Overvoltage category VDE 0100

3
Note, LED switching conditions display

(1) LED yellow: Channel 2 / AS-i SaW Bit 2.3
(2) LED green/red (AS-i duo LED): Supply voltage / communica
(3) LED yellow: Channel 1 / AS-i SaW Bit 0.1
Review, Resistance to vibrations to EN 60068-2-6

10 Hz ... 150 Hz, amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Time, Reaction, maximum

100 ms
Selection (Yes/No), Integral System Diagnostics, status

Yes
Current, consumption, AS-i, maximum

250 mA
Electrical Data, Inputs, AS-i, Channel 1

Data bits DI 0 / DI 1 = dynamic code transmission
Electrical Data, Inputs, AS-i, Channel 2

Data bits DI 2 / DI 3 = dynamic code transmission
Electrical Data, AS-i, Input module address

0
Electrical data, AS-i, Parameter bits, P0

Actuator detected
Electrical data, AS-i, Parameter bits, P1

Solenoid interlock locked
Electrical data, AS-i, Parameter bits, P2

Magnet voltage in tolerance range
Electrical data, AS-i, Parameter bits, P3

Error message - locking/unlocking of the solenoid interlock
Electrical data, AS-i, Profile

S-7.B.F.E
Electrical Data, AS-i, Specification

Safety-Slave
Electrical data, AS-i, Version

V 2.1
Electrical data, Connector, AS-i, PIN 1

AS-i +
Electrical data, Connector, AS-i, PIN 2

Aux - (P)
Electrical data, Connector, AS-i, PIN 3

AS-Interface -
Electrical data, Connector, AS-i, PIN 4

Aux + (P)
Electrical Data, Device protection, AS-i

Internal short-circuit proof
Electrical data, Outputs, AS-i, DO 0

Solenoid control
Electrical data, Outputs, AS-i, DO 1

No Function
Electrical data, Outputs, AS-i, DO 2

No Function
Electrical data, Outputs, AS-i, DO 3

No Function
Note, Electrical data, AS-i, Input module address

Preset to address 0, can be changed through AS-interface bus
Note, Electrical data, AS-i, Parameter bits

Set the parameter outputs to "1111" (0xF)
Note, operating voltage, AS-i

Protection against polarity reversal
Note, rated operating voltage, ASi

Protection against polarity reversal
Review, Coding, AS-i, ID-Code

0xB
Review, Coding, AS-i, ID-Code1

0xF
Review, Coding, AS-i, ID-Code2

0xE
Review, Coding, AS-i, IO-Code

0x7
Safety values, PFD value

0.00000114 /h
Safety parameters, Safety Integrity Level (SIL)

1
Voltage, Operating voltage, AS-i, maximum

31.6 VDC
Voltage, Operating voltage, AS-i, minimum

26.5 VDC
Voltage, rated operating voltage, ASi, maximum

31.6 VDC
Voltage, rated operating voltage, ASi, minimum

26.5 VDC
Voltage, type, ASi

DC
Design, Position, Connector

Bottom
Note, Safety Parameters, PFH-value

up to max. 100,000 switching cycles/year
Note, Safety Parameters, PFH-value, Fault exclusion

up to max. 100,000 switching cycles/year
Safety parameters, PFH value, Fault exclusion

0.000000101 /h
