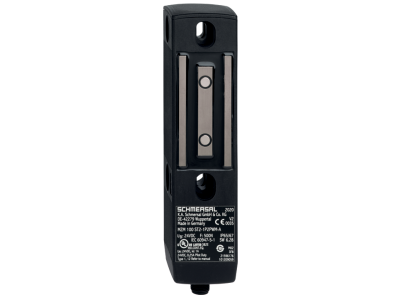

Actuator monitored
Power to lock
Connector M12, 8-pole
Automatic latching
Solenoid interlocks with innovating and unique operating principle
40 mm x 179 mm x 40 mm
Electronic contact-free, coded system
Thermoplastic enclosure
Max. length of the sensor chain 200 m
3 LEDs to show operating conditions
Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
Intelligent diagnosis
Self-monitoring series-wiring
Patented

SKU

4030661393407
Manufacturer code

101208738
Coding, Coding level according to EN ISO 14119

Low
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661393407
SAP, product group

Initial
SAP, gross weight

640.000 g
SAP, net weight

640.000 g
Web Type

Product range
Type of Execution, IP Protection class, General

IP67
IP65
Type of Execution, Mechanical life, minimum,

1000000 Operations
Height, permissible installation height above sea level, maximum

2000 m
Height, Sensor

177.5 mm
Length, Sensor

40 mm
Width, Sensor

40 mm
Force, Latching force

30 N
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN ISO 13849-1
EN ISO 14119
EN IEC 61508
EN IEC 60947-5-3
Note, Relative humidity

non-condensing
non-icing
Number, Safety contacts

2
PNV, standard, certificates

cULus
TÜV
UKCA
Electrical data, Terminal, Connector, Transmitter, General

Connector M12, 8-pole
Safety parameter

EN ISO 13849-1
EN IEC 61508
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +55 °C
Temperature, ambient temperature, maximum

55 °C
Temperature, ambient temperature, minimum

-25 °C
Time, duty cycle solenoid

100 %
Time, test pulse duration, maximum

1 ms
Time, test pulse interval, solenoid control, minimum

40 ms
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Selection (Yes/No), Power to lock

Yes
Selection (Yes/No), Traceparts

Yes
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Type of execution, mounting, Screws

2x M6
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of Execution, Protection class (Operating resource)

3
Note, General

As long as the actuating unit is applied to the solenoid int
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Coding, general information

Universal coding
Type of application, Relative humidity [generated produtct variant]

30 ... 95 %
Type of application, Relative humidity, maximum

95 %
Type of application, Relative humidity, minimum

30 %
Current, consumption at 24V, magnet control

10 mA
Current, consumption at 24V, safety inputs

5 mA
Current, consumption, solenoid ON, average

350 mA
Current, consumption, solenoid ON, peak

550 mA / 10 ms
Current, Residual current, Fail-safe output, maximum

0.5 mA
Current, Rated operating current

1100 mA
Current, Rated operating current, Safe digital outputs

250 mA
Current, Utilisation category DC-13, Fail-safe digital output

0.25 A
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, Overvoltage category VDE 0100

3
Type of execution, switching output, diagnostic output, electric

short-circuit proof, p-type
Type of execution, switching output, fail-safe output, electric

short-circuit proof, p-type
Lenght, sensor chain, maximum

200 m
Area, ensured switch distance OFF S_ar

1 mm
Area, ensured switch distance ON S_ao

0 mm
Electrical data, Classification, ZVEI CB24I: Sink, Solenoid control (inputs)

C0
Electrical data, Classification, ZVEI CB24I: Sink, Safety digital inputs

C1
Electrical data, Classification, ZVEI CB24I: Sink, fail-safe digital outputs

C1
Electrical data, Classification, ZVEI CB24I: Source, Solenoid control (inputs)

C1
C2
C3
Electrical data, Classification, ZVEI CB24I: Source, Safety digital inputs

C1
C2
C3
Electrical data, Classification, ZVEI CB24I: Source, fail-safe digital outputs

C1
Electrical data, Connector 1, Pin assignment, PIN 1

A1 Supply voltage UB
Electrical data, Connector 1, Pin assignment, PIN 2

X1 Safety input 1
Electrical data, Connector 1, Pin assignment, PIN 3

A2 GND
Electrical data, Connector 1, Pin assignment, PIN 4

Y1 Safety output 1
Electrical data, Connector 1, Pin assignment, PIN 5

OUT serial diagnostic output
Electrical data, Connector 1, Pin assignment, PIN 6

X2 Safety input 2
Electrical data, Connector 1, Pin assignment, PIN 7

Y2 Safety output 2
Electrical data, Connector 1, Pin assignment, PIN 8

IN serial diagnostic input
Electrical data, Designation device connection, Solenoid control

IN
Electrical data, Designation device connection, Safety inputs

X1 and X2
Electrical data, Designation device connection, Safety outputs

Y1 and Y2
Electrical data, External wiring and device fuse rating

2 A gG
Electrical data, Fuse rating, General

short-circuit proof, p-type
Electrical data, Fuse rating to UL 508, maximum

2 A
Electrical data, Inputs, Switching thresholds for magnet inputs

-3 V … 5 V (Low)
15 V … 30 V (High)
Electrical data, inputs, switching thresholds for fail-safe inputs

−3 V … 5 V (Low)
15 V … 30 V (High)
Force, Clamping force, Guaranteed

500 N
Force, Clamping force, Typically

750 N
Note, Mechanical lifetime

Actuating speed ≤ 0.5 m/s
Operations for door weights ≤ 5 kg
Note, LED switching conditions display

Supply voltage UB: LED green
Operating condition: LED green
Error / functional defect: LED red
Notes, length, sensor chain

Cable length and cross-section change the voltage drop depen
Note, series connection, sensors

Unlimited number of devices, oberserve external line fusing,
Note, operating voltage, DC

stabilised PELV power supply
Recommendation, actuator

MZM 100-B1.1
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm / 5 g
Review, restistance to shock

30 g / 11 ms
Time, Duration of risk, maximum

150 ms
Time, Reaction, maximum

150 ms
Time, Switching frequency, maximum

1 Hz
Time, test pulse duration, safety, digital output, maximum

1 ms
Time, test pulse interval, safety digital input, minimum

100 ms
Time, test pulse interval, safety digital output, typical

1000 ms
Time, Time to readiness, maximum

4000 ms
Tolerance, operating voltage, DC, maximum

10 %
Tolerance, operating voltage, DC, minimum

-15 %
Torque, tightening torque, screw, mounting

8 Nm
Voltage, voltage drop Ud, maximum

1 V
Voltage, Operating voltage, maximum

26.4 VDC
Voltage, Operating voltage, minimum

20.4 VDC
Voltage, rated operating voltage

24 VDC
Voltage, type

DC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), latching

Yes
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Series-wiring

Yes
Selection (Yes/No), Short circuit detection

Yes
Current, operation current, serial diagnostic SD

150 mA
Type of execution, switching output, seriel diagnostic SD, electric

short-circuit proof, p-type
Electrical data, Designation device connection, SD interface

OUT
Electrical data, wiring capacity, serial diagnostic SD, maximum

50 nF
Number, Series-wiring of sensors

31
Selection (Yes/No), Serial diagnostics

Yes
Selection (Yes/No), Actuator monitored

Yes
