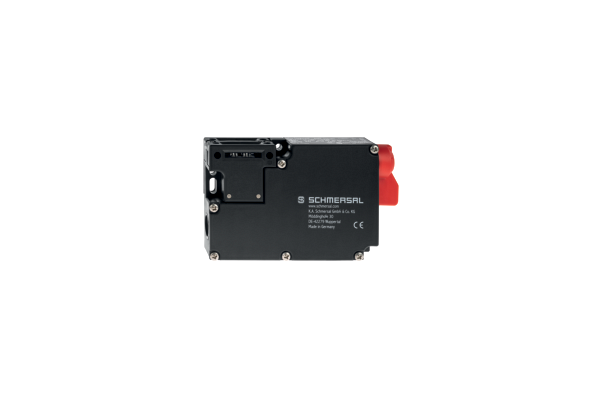

Large wiring compartment
Emergency exit, lateral
cable entries 4 M 16 x 1.5
Thermoplastic enclosure
Double-insulated
Interlock with protection against incorrect locking.
130 mm x 90 mm x 30 mm
6 Contacts
Long life

SKU

4030661352916
Manufacturer code

101192611
Coding, Coding level according to EN ISO 14119

Low
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661352916
SAP, product group

Initial
SAP, gross weight

460.000 g
SAP, net weight

460.000 g
Web Type

Product range
Current, Thermal test current

6 A
Current, Utilisation category AC-15, Auxiliary contacts

4 A
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Auxiliary contacts

2.5 A
Current, Utilisation category DC-13, Safety contact

2.5 A
Type of Execution, Cable entry

4 x M16 x 1,5
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

slow action, positive break NC contact
Height, permissible installation height above sea level, maximum

2000 m
Height, Sensor

90 mm
Length, Sensor

30 mm
Width, Sensor

130 mm
Electrical data, Cable section, maximum

1.5 mm²
Electrical data, Cable section, minimum

0.25 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse to DIN EN 60269-1
Force, clamping force in accordance with EN ISO 14119

2000 N
Clamping force, maximum

2600 N
Force, Latching force

5 N
Force, Positive break force, minimum Force,

20 N
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Movement, actuating speed, maximum

2 m/s
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN ISO 14119
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Relative humidity

non-condensing
non-icing
Number, Actuating directions

3
Number, Auxiliary contacts

2
Number, Safety contacts

4
PNV, standard, certificates

CCC
cULus
Power, electrical consumption, maximum

10 W
Type of switch function

NO contact, NC contact
Electrical data, Terminal, Connector, Transmitter, General

Screw terminals
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-30 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Switching frequency

1000 /h
Time, duty cycle solenoid

100 %
Time, test pulse duration, maximum

5 ms
Time, test pulse interval, solenoid control, minimum

50 ms
Voltage, Rated control voltage

24 VAC/DC
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15, Auxiliary contacts

230 VAC
Current, Utilisation category AC-15, Safety contact VAC}

230 VAC
Voltage, Utilisation category DC-13, Auxiliary contacts

24 VDC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Selection (Yes/No), Power to unlock

Yes

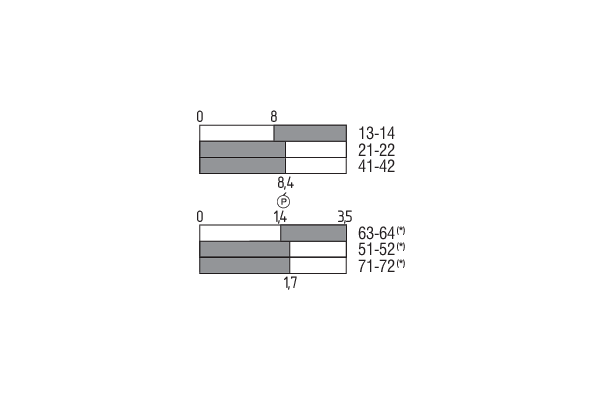

Path, positive break travel

9.5 mm
Note, applications

sliding safety guard
hinged safety guard
removable guard
Selection (Yes/No), Traceparts

Yes
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of execution, mounting

Screws
Type of execution, mounting, Screws

3x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Type of Execution, Protection class (Operating resource)

2
Electrical data, Connector, allowed type of cable

flexible
solid single-wire
solid multi-wire
Force, Positive break force per NC contact, minimum Force,

10 N
Note, Safety parameters, B10d, Normally-open contact (NO)

at 10% I_e and ohmic load
Note, Safety parameters, Fault exclusion

Can be used when fault exclusion for dangerous damage to the
Safety parameters, B10d, Normally-closed contact (NC),

2000000 Operations
Safety parameters, B10d, Normally-open contact (NO)

1000000 Operations
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, EN ISO 13849, Fault exclusion

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

c
Safety parameters, Performance Level, Fault exclusion

d
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Note, Choice (Yes/No), Emergency exit

For cases of danger
Actuation from within the hazardous area
Selection (Yes/No), Emergency exit

Yes
Type of Execution, IP Protection class, General [generated product range]

IP67
Type of execution, mounting, Screw head

Flat head screw
Standard, standards [generated product range]

EN ISO 14119, EN IEC 60947-5-1
Tolerance, Actuating play in direction of actuation

5.5 mm

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
