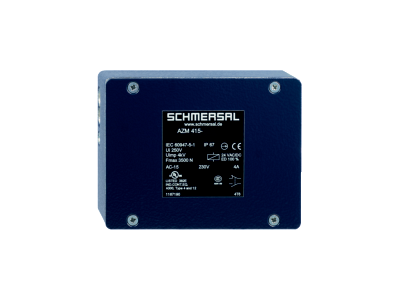

AZM 415-02/11ZPKT 24VAC/DC Machine safety solenoid interlock

AZM 415-02/11ZPKT 24VAC/DC
Adjustable ball latch to 400 N
2 switches in one enclosure
Problem-free opening of stressed doors by means of bell-crank system
Ex version available
Emergency exit
152 mm x 100 mm x 46,5 mm
Metal enclosure
Interlock with protection against incorrect locking.
Robust design
Long life
2 cable entries M 20 x 1.5
Cut clamp termination
  • SKU
    4030661221526
  • Manufacturer code
    101168224
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661221526
  • SAP, product group
    Initial
  • SAP, gross weight
    970.000 g
  • SAP, net weight
    970.000 g
  • Web Type
    Product range
  • Current, Thermal test current
    6 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Height, Sensor
    100 mm
  • Length, Sensor
    46.5 mm
  • Width, Sensor
    152 mm
  • Electrical data, Cable section, maximum
    2 x 2.5 mm²
  • Electrical data, Cable section, minimum
    2 x 0.75 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Force, clamping force in accordance with EN ISO 14119
    3500 N
  • Force, Positive break force, minimum Force,
    15 N
  • Material, contacts, electrical
    Silver
  • Housing material
    Aluminium
  • Movement, actuating speed, maximum
    0.2 m/s
  • Standard, standards
    EN IEC 60947-5-1
    BG-GS-ET-19
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, Actuating directions
    1
  • Number, Auxiliary contacts
    1
  • Number, Safety contacts
    3
  • PNV, standard, certificates
    CCC
    cULus
    BG
  • Power, electrical consumption, maximum
    10 W
  • Type of switch function
    NO contact, NC contact
  • Electrical data, Terminal, Connector, Transmitter, General
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +50 °C
  • Temperature, ambient temperature, maximum
    50 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Voltage, Rated control voltage
    24 VAC/DC
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Selection (Yes/No), Power to unlock
    Yes
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    1 A
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Dimension, Indication legend, A
    Setting screw Ball latch
  • Path, positive break travel
    5 mm
  • Force, Latching force, maximum
    400 N
  • Force, Latching force, minimum
    150 N
  • Material, enclosure coating
    painted
  • Note, applications
    sliding safety guard
    hinged safety guard
  • Number, Guard doors
    1
  • CAD, traceparts, product ID
    33-22052019-077289
  • Note, Choice (Yes/No), Emergency exit
    The emergency exit is used where an intervention in an alrea
    Emergency exit by pressing the red push button
    Resetting by pulling on the latched button
    In removed condition, the guard device is protected against
    using latched pushbutton
  • Selection (Yes/No), Emergency exit
    Yes
