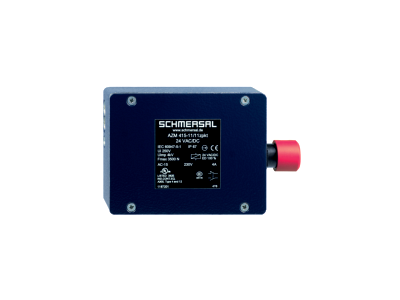

AZM 415-11/02ZPKA 24VAC/ DC Machine safety solenoid interlock

AZM 415-11/02ZPKA 24VAC/ DC
Metal enclosure
Interlock with protection against incorrect locking.
Robust design
Long life
2 cable entries M 20 x 1.5
Cut clamp termination
  • SKU
    4030661175614
  • Manufacturer code
    101155171
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661175614
  • SAP, product group
    Initial
  • SAP, gross weight
    945.000 g
  • SAP, net weight
    945.000 g
  • Web Type
    Product range
  • Current, Thermal test current
    6 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Length, Sensor
    46.5 mm
  • Electrical data, Cable section, maximum
    2 x 2.5 mm²
  • Electrical data, Cable section, minimum
    2 x 0.75 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Force, clamping force in accordance with EN ISO 14119
    3500 N
  • Force, Positive break force, minimum Force,
    15 N
  • Material, contacts, electrical
    Silver
  • Housing material
    Aluminium
  • Movement, actuating speed, maximum
    0.2 m/s
  • Standard, standards
    EN IEC 60947-5-1
    BG-GS-ET-19
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, Actuating directions
    1
  • Number, Auxiliary contacts
    1
  • Number, Safety contacts
    3
  • PNV, standard, certificates
    CCC
    cULus
    BG
  • Power, electrical consumption, maximum
    10 W
  • Type of switch function
    NO contact, NC contact
  • Electrical data, Terminal, Connector, Transmitter, General
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +50 °C
  • Temperature, ambient temperature, maximum
    50 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Voltage, Rated control voltage
    24 VAC/DC
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Selection (Yes/No), Power to lock
    Yes
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    1 A
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Path, positive break travel
    5 mm
  • Force, Latching force, maximum
    400 N
  • Force, Latching force, minimum
    150 N
  • Material, enclosure coating
    painted
  • Note, applications
    sliding safety guard
    hinged safety guard
  • Number, Guard doors
    1

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
