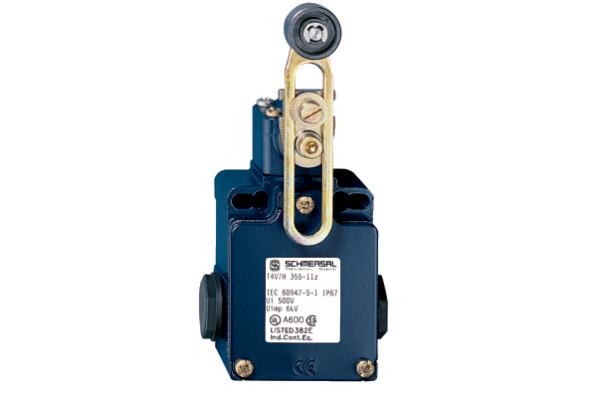

Metal enclosure
Wide range of alternative actuators
Good resistance to oil and petroleum spirit
66,7 mm x 76 mm x 38 mm
Actuator heads can be repositioned by 4 x 90°
only for positioning tasks
Mounting details to EN 50041
Switching points to EN 50041

Manufacturer code

151173429
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Current, Thermal test current

10 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

4 A
Actuating element

Roller lever
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
IP65
Type of Execution, Mechanical life, minimum,

30000000 Operations
Height, Sensor

173.5 mm
Length, Sensor

57.25 mm
Width, Sensor

40.5 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Material, housing

Light alloy die-casting
Material, lever

Metal film
Material, Castor

Plastic
Movement, actuating speed, maximum

2.5 m/s
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Motion, Actuating Speed

Actuating speed with actuating angle 30° to switch axis
PIM maintenance status

Discharge "Online catalog"
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
EN IEC 60947-5-1
BG-GS-ET-15
SAP, basic quantity unit

Piece
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

355.000 g
SAP, net weight

355.000 g
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Switching frequency

5000 /h
Tightening torque, actuating torque, minimum

0.31 Nm
Voltage, Rated impulse withstand voltage

4 kV
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Type of Execution, Connector enclosure, Side B

Female connector
Material, enclosure coating

painted
