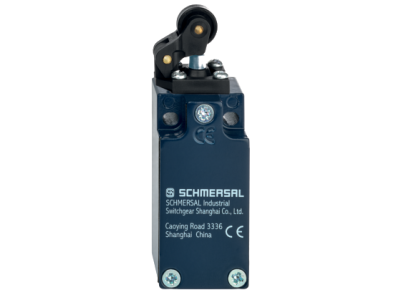

Snap action with constant contact pressure up to switching point
1 Cable entry M 20 x 1.5
Metal enclosure
Wide range of alternative actuators
Good resistance to oil and petroleum spirit
30 mm x 63,5 mm x 30 mm
Actuator heads can be repositioned by 4 x 90°
Mounting details to EN 50047

Manufacturer code

151164307
CAD, traceparts, product ID

33-22052019-077387
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Current, Thermal test current

10 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

1 A
Actuating element

Offset roller lever
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
IP65
Type of Execution, Mechanical life, minimum,

20000000 Operations
Height, Sensor

95.1 mm
Length, Sensor

30 mm
Width, Sensor

30 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Material, housing

Metal, zinc die-cast
Movement, actuating speed, maximum

1 m/s
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Motion, Actuating Speed

Actuating speed with actuating angle 30° to switch axis
Number, Auxiliary contacts

1
PIM maintenance status

Discharge "Online catalog"
Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

164.539 g
SAP, net weight

164.539 g
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Bounce duration, maximum

3 ms
Time, Switching frequency

5000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Movement, actuating speed, minimum

24 mm/min
Number, Safety contacts

1
PNV, standard, certificates

CCC
cULus
Selection (Yes/No), Safety functions

Yes
Force, Actuating force, minimum

9 N
Force, Positive break force, minimum Force,

19 N
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
BG-GS-ET-15
Type of Execution, Actuator type DIN EN 50047

E
Time, Switchover time, minimum

5.5 ms

Manufacturer Schmersal
