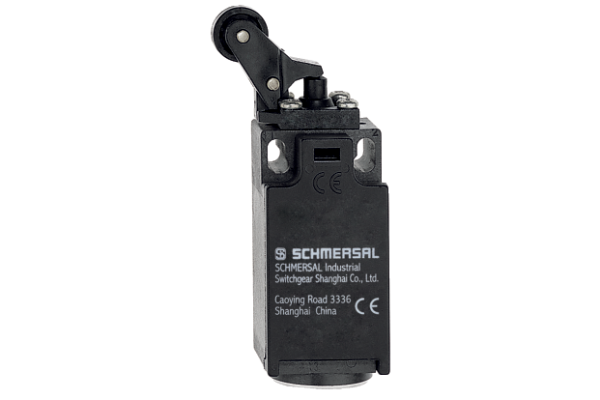

Thermoplastic enclosure
Good resistance to oil and petroleum spirit
Wide range of alternative actuators
30 mm x 58,5 mm x 30 mm
Actuation from bottom parallel to the switch, therefore only suitable for small housings.
Double-insulated
Mounting details to EN 50047
Actuator heads can be repositioned by 4 x 90°

Manufacturer code

151104867
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Current, Thermal test current

10 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

1 A
Actuating element

Angle roller lever
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
IP65
Type of Execution, Mechanical life, minimum,

20000000 Operations
Height, Sensor

91.5 mm
Length, Sensor

30 mm
Width, Sensor

35 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Material, housing

Plastic, glass-fibre-reinforced
Movement, actuating speed, maximum

1 m/s
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Motion, Actuating Speed

Actuating speed with actuating angle 30° to switch axis
PIM maintenance status

Discharge "Online catalog"
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

55.000 g
SAP, net weight

55.000 g
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Switching frequency

5000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Movement, actuating speed, minimum

160 mm/min
Force, Actuating force, minimum

9 N

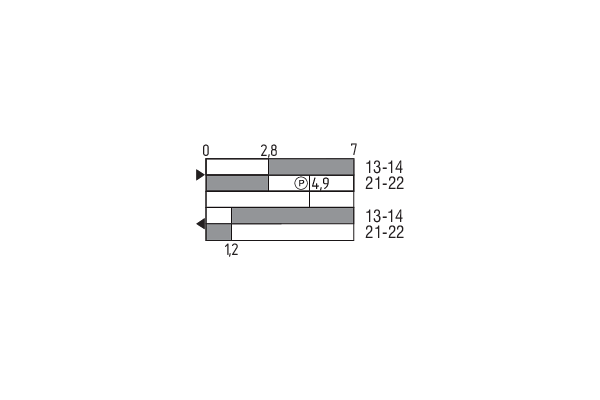

Force, Positive break force, minimum Force,

19 N
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
BG-GS-ET-15

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
