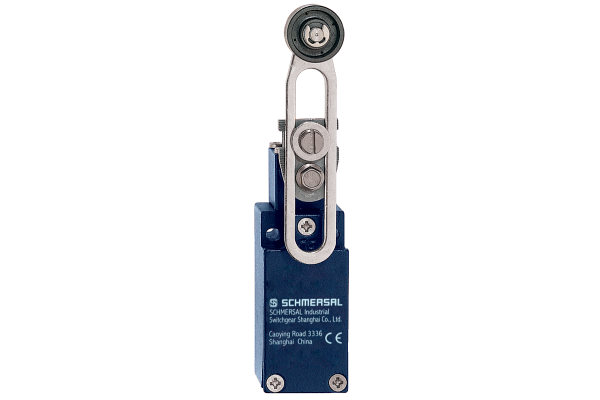

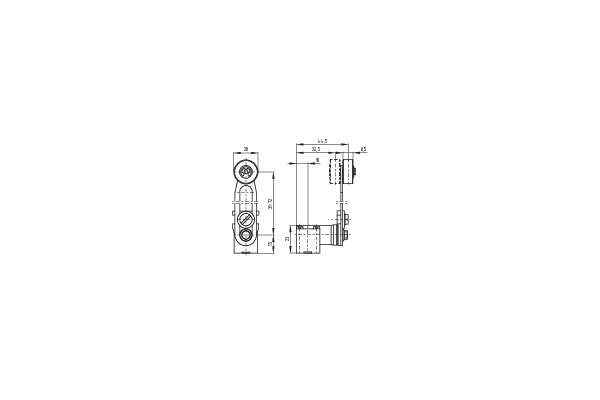

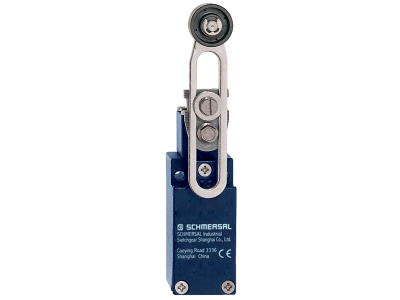

TV7H 235-20ZZ Machine safety position switch

TV7H 235-20ZZ
Metal enclosure
Wide range of alternative actuators
Good resistance to oil and petroleum spirit
30 mm x 63,5 mm x 30 mm
Actuator heads can be repositioned by 4 x 90°
Mounting details to EN 50047
only for positioning tasks
Lever angle adjustable in 10° steps
  • Manufacturer code
    151095065
  • Current, Required rated short-circuit current to EN 60947-5-1
    1000 A
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    1 A
  • Actuating element
    Roller lever
  • Type of Execution, Housing construction form
    Norm construction design
  • Type of Execution, IP Protection class, General
    IP67
    IP65
  • Type of Execution, Mechanical life, minimum,
    20000000 Operations
  • Height, Sensor
    160.5 mm
  • Length, Sensor
    49 mm
  • Width, Sensor
    30 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Cable section, minimum
    0.75 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Material, housing
    Metal, zinc die-cast
  • Material, lever
    Metal film
  • Material, Castor
    Plastic
  • Movement, actuating speed, maximum
    1 m/s
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, Motion, Actuating Speed
    Actuating speed with actuating angle 30° to switch axis
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    225.000 g
  • SAP, net weight
    225.000 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Switching frequency
    5000 /h
  • Tightening torque, actuating torque, minimum
    0.15 Nm
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), Traceparts
    Yes
  • Standard, standards
    EN IEC 60947-5-1
    EN ISO 13849-1
    BG-GS-ET-15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
