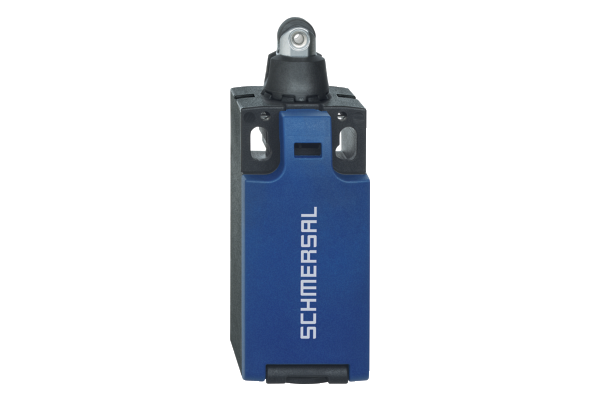

PS216-Z11-R200-U2 Machine safety position switch
Manufacturer: Schmersal Code: 103046693 SKU: 4030661569130
Actuating head rotated by 90°
thermoplastic enclosure with foldable latching cover
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50047
plastic roller Ø 9,5 mm
LED version available
thermoplastic enclosure with foldable latching cover
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50047
plastic roller Ø 9,5 mm
LED version available
- SKU4030661616506
- Manufacturer code103046681
- Current, Required rated short-circuit current to EN 60947-5-1400 A
- Current, Thermal test current10 A
- Current, Utilisation category AC-153 A
- Current, Utilisation category DC-133 A
- Actuating elementRoller plunger R200
- Type of Execution, Housing construction formNorm construction design
- Type of Execution, IP Protection class, GeneralIP67
IP66 - Type of Execution, Mechanical life, minimum,10000000 Operations
- Height, Sensor85.6 mm
- Length, Sensor32.5 mm
- Width, Sensor31 mm
- Electrical data, Cable section, maximum1.5 mm²
- Electrical data, Cable section, minimum0.34 mm²
- Electrical data, Max. fuse rating6 A gG D-fuse
- Material, contacts, electricalSilver
- Material, housingPlastic, glass-fibre-reinforced
- Material, CastorPlastic
- Movement, actuating speed, maximum0.5 m/s
- Note, Electrical Data, Cable sectionSettle length of the conductor: 5...6mm
- PIM maintenance statusDischarge "Online catalog"
- Type of switch function2 NC contact
- Type of electric connectionScrew terminals M20 x 1.5
- Safety parameters, Mission time20 Year(s)
- Safety parameterEN ISO 13849-1
- SAP, basic quantity unitPiece
- SAP, product groupInitial
- Temperature, Ambient temperature[generated product variant]-30 ... +80 °C
- Temperature, ambient temperature, maximum80 °C
- Temperature, ambient temperature, minimum-30 °C
- Time, Switching frequency5000 /h
- Voltage, Rated impulse withstand voltage4 kV
- Voltage, rated insulation voltage250 VAC
- Voltage, Utilisation category AC-15240 VAC
- Voltage, Utilisation category DC-1324 VDC
- Web TypeProduct range
- Movement, actuating speed, minimum60 mm/min
- Number, Safety contacts2
- PNV, standard, certificatesCCC
cULus - SAP, EAN (European Article Number)4030661616506
- Selection (Yes/No), Safety functionsYes
- Selection (Yes/No), TracepartsYes
- Force, Positive break force, minimum Force,40 N
- Standard, standardsEN IEC 60947-5-1
- Type of Execution, Actuator type DIN EN 50047C
- Type of Execution, Degree of pollution IEC/EN 60947-13
- Type of Execution, Overvoltage category IEC/EN 60664-1II
- Safety parameters, B10d, Normally-closed contact (NC),20000000 Operations
- Type of Execution, Position of the cable glandbottom
- Tightening torque, tightening torque, Electrical connection[generated product variant]0.6 ... 0.8 Nm
- Tightening torque, tightening torque, Electrical connection, maximum0.8 Nm
- Torque, tightening torque, electrical connection, minimum0.6 Nm
- Torque, tightening torque, screw, mounting1.2 Nm
- Angle, rotation, actuator90 °
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Schmersal
Product attachments
file-28874-f8283bba250be34eae84e1fb6bf9e8ba.pdf (PDF, 650.56 kB)Related products
