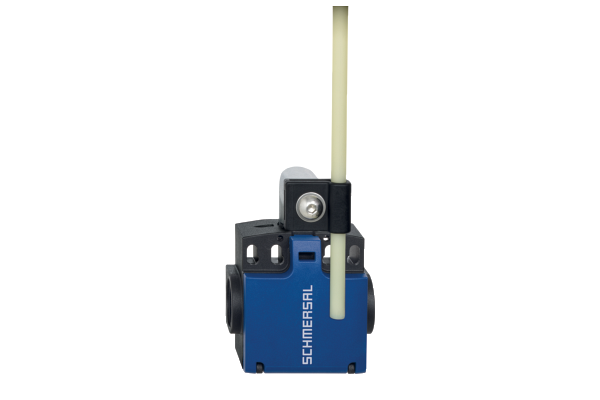

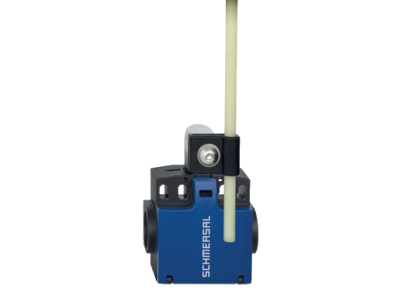

PS226-Z11-J200 Machine safety position switch

PS226-Z11-J200
only for positioning tasks
Lever angle adjustable in 15° steps
Simple and quick to adjust the control elements by 45°.
thermoplastic enclosure with foldable latching cover
Quick connection technology as connection terminals rotated by 45°
cable entry 2 x M20 x 1,5
Design to EN 50047
LED version available
  • SKU
    4030661502281
  • Manufacturer code
    103015069
  • Current, Required rated short-circuit current to EN 60947-5-1
    400 A
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    3 A
  • Current, Utilisation category DC-13
    3 A

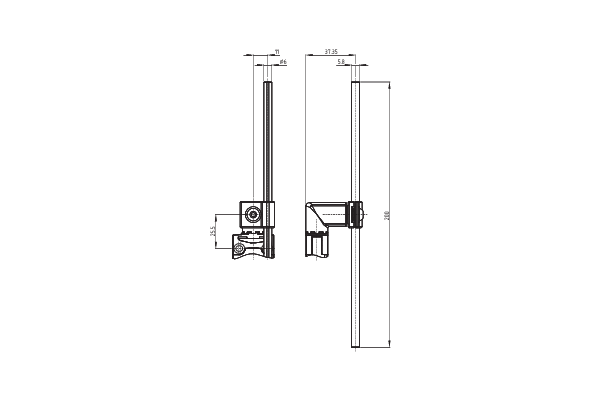

  • Actuating element
    Rod lever J200
  • Type of Execution, Housing construction form
    Norm construction design
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations

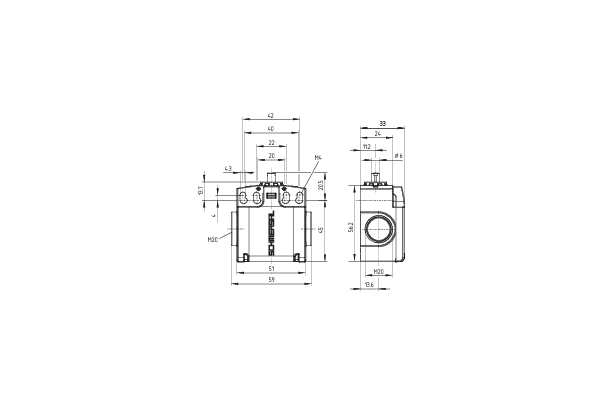

  • Height, Sensor
    180.5 mm
  • Length, Sensor
    33 mm
  • Width, Sensor
    59 mm
  • Electrical data, Cable section, maximum
    1.5 mm²
  • Electrical data, Cable section, minimum
    0.34 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Material, contacts, electrical
    Silver
  • Material, housing
    Plastic, glass-fibre-reinforced
  • Movement, actuating speed, maximum
    1 m/s
  • Note, Electrical Data, Cable section
    Settle length of the conductor: 5...6mm
  • Number, Auxiliary contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"

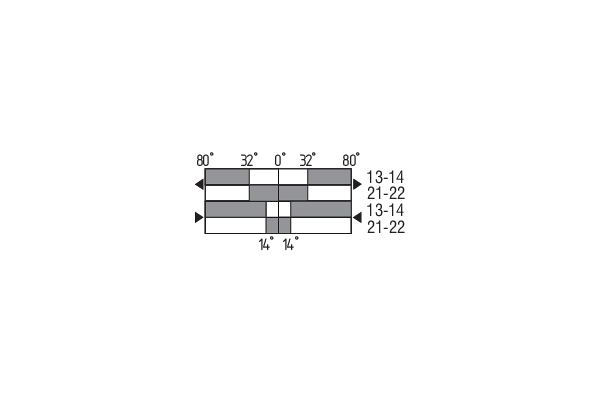

  • Type of switch function
    1 NO contact, 1 NC contacts
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, product group
    Initial
  • SAP, gross weight
    137.840 g
  • SAP, net weight
    137.840 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Switching frequency
    5000 /h
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    240 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Movement, actuating speed, minimum
    10 mm/min
  • PNV, standard, certificates
    CCC
    cULus
  • SAP, EAN (European Article Number)
    4030661502281
  • Selection (Yes/No), Traceparts
    Yes
  • Force, Positive break force, minimum Force,
    40 N
  • Standard, standards
    EN IEC 60947-5-1
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Tightening torque, tightening torque, Electrical connection[generated product variant]
    0.6 ... 0.8 Nm
  • Tightening torque, tightening torque, Electrical connection, maximum
    0.8 Nm
  • Torque, tightening torque, electrical connection, minimum
    0.6 Nm
  • Torque, tightening torque, screw, mounting
    1.2 Nm

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
