Thermoplastic enclosure
Symmetric enclosure
Lever angle adjustable in 15° steps
Protection class IP66, IP67
Actuator heads can be repositioned by 8 x 45°
Design to EN 50047

SKU

4030661496290
Manufacturer code

103014413
Current, Required rated short-circuit current to EN 60947-5-1

400 A
Current, Utilisation category AC-15

1.5 A
Current, Utilisation category DC-13

1.5 A

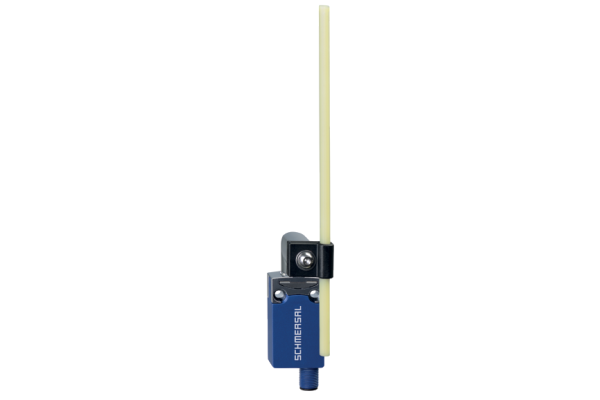

Actuating element

Rod lever J200
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
IP66
Type of Execution, Mechanical life, minimum,

10000000 Operations
Length, Sensor

16.6 mm
Width, Sensor

31 mm
Material, contacts, electrical

Silver
Material, housing

Plastic, glass-fibre reinforced thermoplastic, zinc die-cast
Movement, actuating speed, maximum

1 m/s
PIM maintenance status

Discharge "Online catalog"

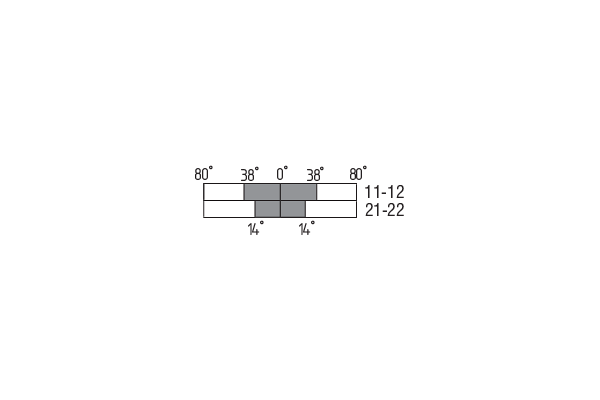

Type of switch function

Opener (NC)
Type of electric connection

Connector M12, 4-pole
SAP, basic quantity unit

Piece
SAP, product group

Initial
SAP, gross weight

247.000 g
SAP, net weight

247.000 g
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Bounce duration, maximum

3 ms
Time, Switching frequency

5000 /h
Tightening torque, actuating torque, minimum

0.15 Nm
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

300 V
Voltage, Utilisation category AC-15

240 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Movement, actuating speed, minimum

60 mm/min
PNV, standard, certificates

CCC
cURus
SAP, EAN (European Article Number)

4030661496290
Time, Switchover time, maximum

5.5 ms
Review, general dimensions (length, width, height, etc.)

Height of sensor: 169 mm (rod centre)
Standard, standards

EN IEC 60947-5-1
Tightening torque, Positive break torque

0.6 Nm
Type of Execution, Terminals, mechanical

bottom
Type of Execution, Degree of pollution IEC/EN 60947-1

3
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Diameter, Wire cross-section,

0.5 mm<sup>2</sup>
Material, active area

Metal film
Number, cable wires, indication with cable cross-section, electrical

4
Length, Lever

200 mm
Diameter, Rod

6 mm
Design, Position, Connector

Bottom

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
