Thermoplastic enclosure
Symmetric enclosure
Protection class IP66, IP67

SKU

4030661474694
Manufacturer code

103010887
Current, Required rated short-circuit current to EN 60947-5-1

400 A
Current, Utilisation category DC-13

1.5 A
Actuating element

plunger S200
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
IP66
Type of Execution, Mechanical life, minimum,

10000000 Operations

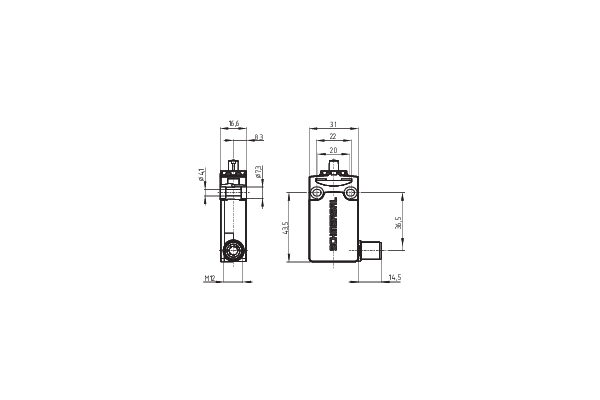

Height, Sensor

64 mm
Length, Sensor

16.6 mm
Width, Sensor

31 mm
Material, contacts, electrical

Silver
Material, housing

Plastic, glass-fibre reinforced thermoplastic, zinc die-cast
Movement, actuating speed, maximum

0.5 m/s
Number, Auxiliary contacts

2
PIM maintenance status

Discharge "Online catalog"

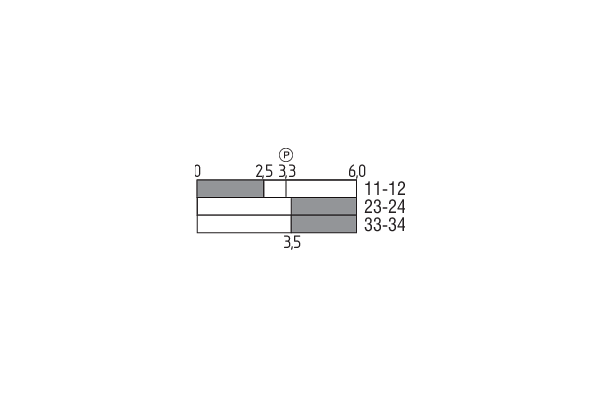

Type of switch function

2 NO contacts, 1 NC contact
Type of electric connection

Connector M12, 6-pole
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, product group

Initial
SAP, gross weight

57.620 g
SAP, net weight

57.620 g
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Bounce duration, maximum

3 ms
Time, Switching frequency

5000 /h
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

300 V
Voltage, Utilisation category AC-15

240 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Movement, actuating speed, minimum

60 mm/min
Number, Safety contacts

1
PNV, standard, certificates

CCC
cURus
SAP, EAN (European Article Number)

4030661474694
Selection (Yes/No), Safety functions

Yes
Force, Actuating force, minimum

10 N
Time, Switchover time, maximum

5.5 ms
Force, Positive break force, minimum Force,

40 N
Standard, standards

EN IEC 60947-5-1
Type of Execution, Actuator type DIN EN 50047

B
Tightening torque, Positive break torque

0.6 Nm
Type of Execution, Degree of pollution IEC/EN 60947-1

3
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Diameter, Wire cross-section,

0.5 mm<sup>2</sup>
Material, active area

Metal film
Note, Safety parameters, B10d, Normally-open contact (NO)

at 10% I_e and ohmic load
Number, cable wires, indication with cable cross-section, electrical

6
Safety parameters, B10d, Normally-closed contact (NC),

20000000 Operations
Safety parameters, B10d, Normally-open contact (NO)

1000000 Operations
Design, Position, Connector

Right
