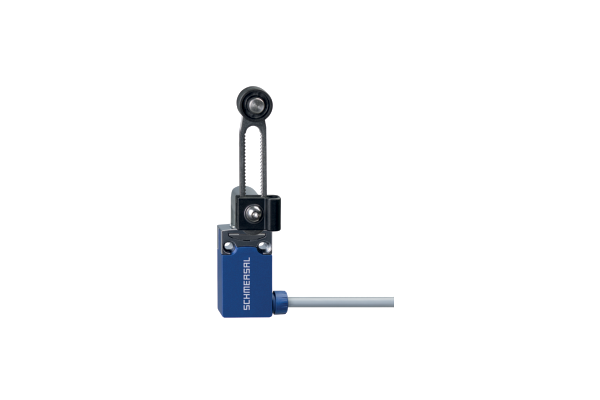

PS116-Z12-LR200-N200 Machine safety position switch

PS116-Z12-LR200-N200
Pre-wired cable right, 2 m
Snap action 1 Normally open contact (NO)
2 Opener (NC)
Thermoplastic enclosure
With plastic roller
length adjustable in 2 mm steps
Lever angle adjustable in 15° steps
Actuator heads can be repositioned by 8 x 45°
  • SKU
    4030661442440
  • Manufacturer code
    103006595
  • Current, Required rated short-circuit current to EN 60947-5-1
    400 A
  • Current, Utilisation category DC-13
    1.5 A
  • Actuating element
    Roller lever N200
  • Type of Execution, Housing construction form
    Norm construction design
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Height, Sensor
    139 mm
  • Length, Sensor
    16.6 mm
  • Width, Sensor
    31 mm
  • Material, contacts, electrical
    Silver
  • Material, housing
    Plastic, glass-fibre reinforced thermoplastic, zinc die-cast
  • Material, Castor
    Plastic
  • Movement, actuating speed, maximum
    1 m/s
  • Number, Auxiliary contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of switch function
    1 NO contact, 2 NC contacts
  • Type of electric connection
    Pre-wired cable
    Cable, 6-pole
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, product group
    Initial
  • SAP, gross weight
    257.000 g
  • SAP, net weight
    257.000 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Bounce duration, maximum
    3 ms
  • Time, Switching frequency
    5000 /h
  • Tightening torque, actuating torque, minimum
    0.15 Nm
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    300 V
  • Voltage, Utilisation category AC-15
    240 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Movement, actuating speed, minimum
    10 mm/min
  • Number, Safety contacts
    2
  • PNV, standard, certificates
    CCC
    cURus
  • SAP, EAN (European Article Number)
    4030661442440
  • Selection (Yes/No), Safety functions
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Time, Switchover time, maximum
    5.5 ms
  • Force, Positive break force, minimum Force,
    40 N
  • Standard, standards
    EN IEC 60947-5-1
  • Type of Execution, Actuator type DIN EN 50047
    A
  • Tightening torque, Positive break torque
    0.6 Nm
  • Design, Type, Cable
    LiYY
  • Type of Execution, Terminals, mechanical
    right
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Diameter, Wire cross-section,
    0.5 mm<sup>2</sup>
  • Cable length
    2 m
  • Material, active area
    Metal film
  • Note, Safety parameters, B10d, Normally-open contact  (NO)
    at 10% Ie and ohmic load
  • Number, cable wires, indication with cable cross-section, electrical
    6
  • Safety parameters, B10d, Normally-closed contact  (NC),
    20000000 Operations
  • Safety parameters, B10d, Normally-open contact (NO)
    1000000 Operations
  • Selection (Yes/No), CADENAS
    Yes
  • Diameter, Castor
    20 mm
