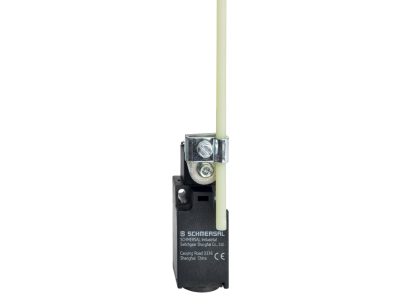

with rubber roller 50 mm diameter
1 Cable entry M 20 x 1.5
Thermoplastic enclosure
Good resistance to oil and petroleum spirit
Wide range of alternative actuators
30 mm x 58,5 mm x 30 mm
Double-insulated
Mounting details to EN 50047
Actuator heads can be repositioned by 4 x 90°
only for positioning tasks
Lever angle adjustable in 10° steps

SKU

4030661415161
Manufacturer code

101218067
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Current, Thermal test current

10 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

1 A
Actuating element

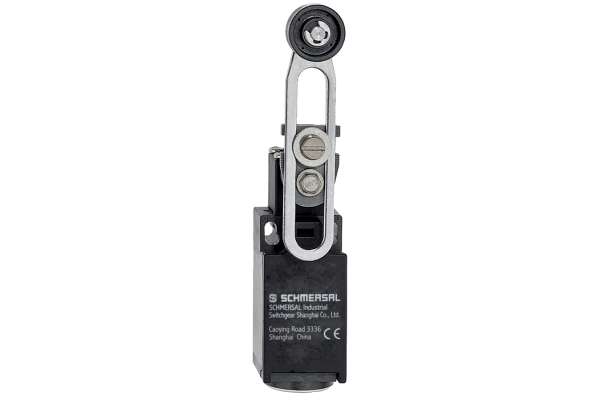

Roller lever
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
IP65
Type of Execution, Mechanical life, minimum,

20000000 Operations
Height, Sensor

158.5 mm
Length, Sensor

49 mm
Width, Sensor

30 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Material, housing

Plastic, glass-fibre-reinforced
Material, lever

Metal film
Material, Castor

Plastic
Movement, actuating speed, maximum

1 m/s
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Motion, Actuating Speed

Actuating speed with actuating angle 30° to switch axis
Note, time, switchover time

Switchover time in accordance with actuating speed
PIM maintenance status

Discharge "Online catalog"

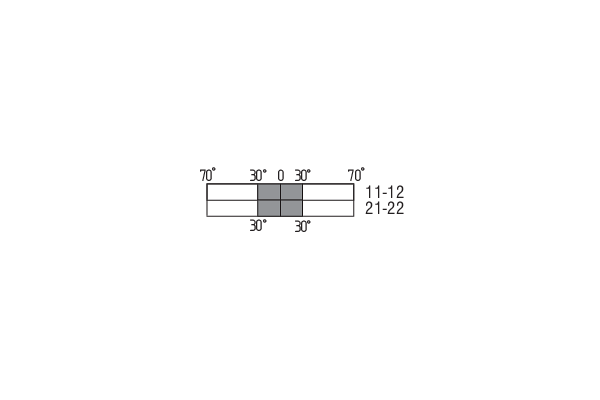

Type of switch function

Opener (NC)
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, product group

HAWA: Electromechanical switchgear
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Switching frequency

5000 /h
Tightening torque, actuating torque, minimum

0.15 Nm
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Movement, actuating speed, minimum

1440 mm/min
Note, time, bounce duration

Bounce duration in accordance with actuating speed
Number, Safety contacts

2
PNV, standard, certificates

CCC
cULus
SAP, EAN (European Article Number)

4030661415161
Selection (Yes/No), Traceparts

Yes
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
BG-GS-ET-15
