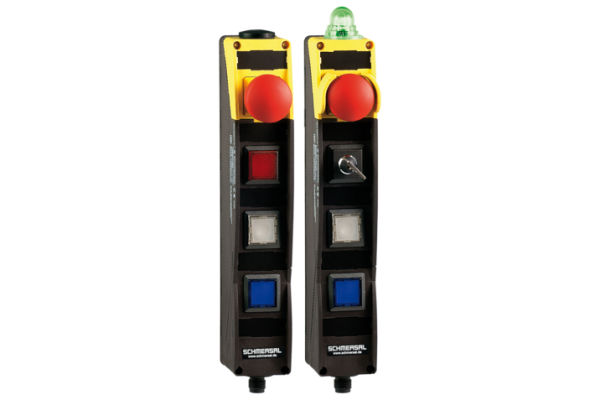

Integrated AS-Interface
with connector plug M12 bottom
Pos 4: WHITE illuminated pushbutton
Pos 1: E-STOP
Pos 2: Blanking plug
Pos 3: BLUE illuminated pushbutton
slender shock-proof thermoplastic enclosure
to be installed at an ergonomic favourable position
to be fitted to commercial-off-the-shelf aluminium profiles

SKU

4030661539911
Manufacturer code

103035657
Type of Execution, IP Protection class, General

IP65
Design, Mechanical Life, Command devices

1000000 Operations
Design, Mechanical Life, Emergency-Stop button

100000 Operations
Type of execution, mounting

interior mounting holes
Type of execution, mounting, Screws

2x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Depth, General

252.5 mm
Height, General

69 mm
Width, General

40 mm
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, climatic stress

DIN EN 60068
Standard, standards

EN IEC 60947-5-1
EN ISO 13850
EN ISO 13849-1
EN IEC 61508
EN IEC 62026-2
Note, Ordering data

Notice: see ordering code
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
ASi-SaW
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm / 5 g
Review, restistance to shock

15 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN IEC 61508
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661539911
SAP, product group

Initial
SAP, gross weight

280.000 g
SAP, net weight

280.000 g
Temperature, Ambient temperature[generated product variant]

-25 ... +65 °C
Temperature, ambient temperature, maximum

65 °C
Temperature, ambient temperature, minimum

-25 °C
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Web Type

Product range
CAD, traceparts, product ID

69-13072010-095143
Type of electric connection

Connector plug M12, 4-pole, (A-coding)
Current, consumption, AS-i, maximum

150 mA
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of Execution, Protection class (Operating resource)

2
Height, permissible installation height above sea level, maximum

2000 m
Electrical data, AS-i, A/B Slave, Parameter bits, P0 ... P3

No function
Electrical data, AS-i, A/B Slave, Profile

S-7.A.7.F
Electrical data, AS-i, A/B Slave, Version

V 3.0
Electrical Data, AS-i, Input module address

0
Electrical Data, Inputs, AS-i, Safety-Slave, Channel 1

Data bits DI 0 / DI 1 = dynamic code transmission
Electrical Data, Inputs, AS-i, Safety-Slave, Channel 2

Data bits DI 2 / DI 3 = dynamic code transmission
Electrical data, AS-i, Safety-Slave, Parameter bits, P0 ... P3

No function
Electrical data, AS-i, Safety-Slave, Profile

S-7.B.F.F
Electrical data, AS-i, Safety-Slave, Version

V 3.0
Electrical data, Connector, AS-i, PIN 1

AS-Interface +
Electrical data, Connector, AS-i, PIN 2

n.c.
Electrical data, Connector, AS-i, PIN 3

AS-Interface -
Electrical data, Connector, AS-i, PIN 4

n.c.
Electrical Data, Device protection, AS-i

Internal short-circuit proof
Electrical data, Inputs, AS-i, A/B Slave, DI 0

Command device Position 4
Electrical data, Inputs, AS-i, A/B Slave, DI 1

Command device Position 3
Electrical data, Inputs, AS-i, A/B Slave, DI 2

Command device Position 2
Electrical data, Inputs, AS-i, A/B Slave, DI 3

Command device Position 2
Electrical data, Outputs, AS-i, A/B Slave, DO 0

Illuminated signal position 4
Electrical data, Outputs, AS-i, A/B Slave, DO 1

Illuminated signal position 3
Electrical data, Outputs, AS-i, A/B Slave, DO 2

Illuminated signal position 2
Electrical data, Outputs, AS-i, A/B Slave, DO 3

No Function
Electrical data, Outputs, AS-i, Safety-Slave, DO 0

Indicator lamp G24 red
Electrical data, Outputs, AS-i, Safety-Slave, DO 1

Indicator lamp G24 green
Electrical data, Outputs, AS-i, Safety-Slave, DO 2

No Function
Electrical data, Outputs, AS-i, Safety-Slave, DO 3

No Function
Note, Electrical data, AS-i, Input module address

Preset to address 0, can be changed through AS-interface bus
Note, Electrical data, AS-i, Parameter bits

Set the parameter outputs to "1111" (0xF)
FID: periphery error
Note, General, AS-i Specification

Both AS-i slaves can be enabled and disabled through the int
Note, operating voltage, AS-i

Protection against polarity reversal
Note, Safety Parameters, PFH-value

up to max. 5,000 switching cycles/year
Note, rated operating voltage, ASi

Protection against polarity reversal
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Performance Level,

e
Safety values, PFD value

0.000000014 /h
Safety parameters, Safety Integrity Level (SIL)

3
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Reaction, maximum

100 ms
Voltage, Operating voltage, AS-i, maximum

31.6 VDC
Voltage, Operating voltage, AS-i, minimum

18.0 VDC
Voltage, rated operating voltage, ASi, maximum

31.6 VDC
Voltage, rated operating voltage, ASi, minimum

18.0 VDC
Voltage, type, ASi

DC
Selection (Yes/No), CADENAS

Yes
Selection (Yes/No), Indicator lamp

No
Selection (Yes/No), Traceparts

Yes
