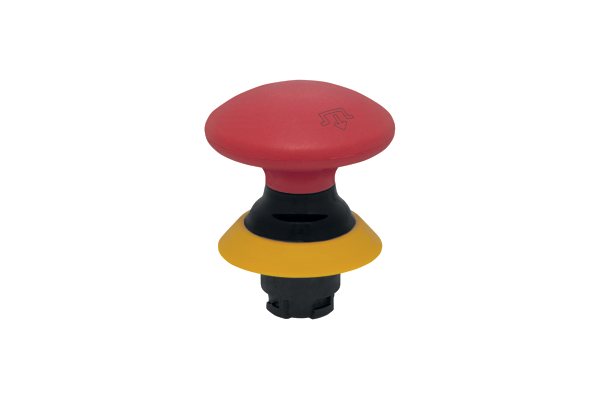

NDRZ50GR/RT-2905-1 Emergency-stop push button

NDRZ50GR/RT-2905-1
Emergency stop and Mushroom devices with latching
hygienic design
Protection class IP69K
Mounting hole 22.3 mm
  • SKU
    4030661480114
  • Manufacturer code
    103011811
  • Colour of the operating element
    Red
  • Type of Execution, construction form
    Integrated jump mechanism
  • Type of Execution, General
    Emergency stop pushbutton
  • Type of Execution, IP Protection class, General
    IP67
    IP69K
  • Type of Execution, Mechanical life, minimum,
    100000 Operations
  • Mounting method
    Mounting flange EFM
  • Diameter, hole, mounting diameter
    22.3 mm
  • Height, General
    45 mm
  • Thickness, Front panel, maximum
    6 mm
  • Thickness, Front panel, minimum
    1.5 mm
  • Material, operators
    ABS
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • PIM maintenance status
    Discharge "Online catalog"
  • Review, restistance to shock
    50 g
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661480114
  • SAP, product group
    Initial
  • SAP, gross weight
    30.000 g
  • SAP, net weight
    30.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Tolerance, absolute
    0.4
  • Tightening torque, tightening torque, screw
    0.6 Nm
  • Web Type
    Product range
  • Selection (Yes/No), Safety functions
    Yes
  • Selection (Yes/No), Full insulation
    Yes
  • Selection (Yes/No), External snap mechanism, integrated
    Yes
  • Selection (Yes/No), latching
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • PNV, standard, certificates
    cULus
    BG
  • Colour of the front ring
    Yellow
  • Colour of the bellows
    Black
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Design, Sealing
    Lip gaskets
    Membrane
  • Diameter, Actuating head
    50 mm
  • Distance, Grid dimensions [mm]
    50 x 50 mm
  • Force, actuating force, approx.
    2.0 N
  • Material, front ring
    ABS, chrome-plated
  • Material, bellows
    Silicone
  • Number of contact elements, maximum
    2
  • Review, Resistance to vibrations to EN 60068-2-6
    10 - 150 Hz (0.5 mm / 5 g)
  • Selection (Yes/No), Mounting flange
    Yes
  • Selection (Yes/No), Emergency-Stop button
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
