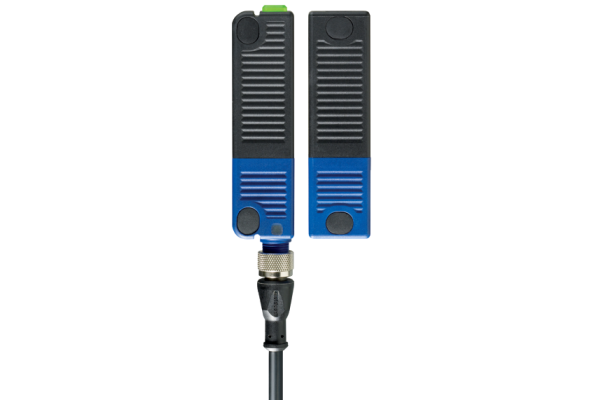

Universal coding with RFID technology
without latching
Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
optionally with integrated magnetic latching

SKU

4030661426396
Manufacturer code

103001535
Type of Execution, Housing construction form

Block
Type of Execution, Terminals, mechanical

not flush
Type of Execution, IP Protection class, General

IP67
IP65
IP69
Type of Execution, Overvoltage category VDE 0100

3
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of Execution, Protection class (Operating resource)

3
Distance, Hysteresis, Mechanical, maximum

2 mm
Distance, Repeat accuracy R _R

0.5 mm
Length, Sensor

22 mm
Area, ensured switch distance OFF S_ar

20 mm
Area, ensured switch distance ON S_ao

10 mm
Range, switch distance S, typical

12 mm
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 61508
EN IEC 60947-5-3
EN ISO 13849-1
EN ISO 14119
EN IEC 62026-2
Note, LED switching conditions display

(1) green/red LED (AS-i Duo LED):Supply voltage / communicat
(2) yellow LED: device condition (enabling status) / hystere
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
ANATEL
ASi-SaW
Recommendation, actuator

RST 36-1-AD01…15
Type of electric connection

Connector plug M12, 4-pole, (A-coding)
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN IEC 61508
EN ISO 13849-1
Performance Level

e
Safety values, PFD value

0.000000000513 /h
Safety parameters, Safety Integrity Level (SIL)

3
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661426396
SAP, product group

Initial
SAP, gross weight

104.210 g
SAP, net weight

104.210 g
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Duration of risk, maximum

200 ms
Time, Reaction, maximum

100 ms
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Web Type

Product range
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Traceparts

Yes
Coding, Coding level according to EN ISO 14119

Low
Height, Sensor

25 mm
Width, Sensor

106.3 mm
Note, Distance, Repeat accuracy R

Axial offset: The long side allows for a maximum height misa
Type of application, Relative humidity, maximum

93 %
Coding, general information

Universal coding
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of Execution, Mechanical life, minimum,

1000000 Operations
Type of execution, mounting, Screws

2x M4 (cylinder head screws with washers DIN 125A / form A)
Height, permissible installation height above sea level, maximum

2000 m
Note, Mechanical lifetime

Operations for door weights ≤ 5 kg
Actuating speed < 0.25 m/s
Note, Relative humidity

non-condensing
non-icing
Power, transmit, RFID, maximum

-6 dB/m
Safety values, PFD value

0.0000324
Time, frequency band, RFID

125 kHz
Time, Switching frequency, maximum

1 Hz
Time, Time to readiness, maximum

5000 ms
Torque, tightening torque, screw, mounting, maximum

2.5 Nm
Torque, tightening torque, screw, mounting, minimum

2.2 Nm
Selection (Yes/No), CADENAS

Yes
Current, consumption, AS-i, maximum

100 mA
Electrical Data, Inputs, AS-i, Channel 1

Data bits DI 0 / DI 1 = dynamic code transmission
Electrical Data, Inputs, AS-i, Channel 2

Data bits DI 2 / DI 3 = dynamic code transmission
Electrical Data, AS-i, Input module address

0
Electrical data, AS-i, Parameter bits, P0

Number actuator 01-15 (binary)
Electrical data, AS-i, Parameter bits, P1

Number actuator 01-15 (binary)
Electrical data, AS-i, Parameter bits, P2

Number actuator 01-15 (binary)
Electrical data, AS-i, Parameter bits, P3

Number actuator 01-15 (binary)
Electrical data, AS-i, Profile

S-0.B.F.E
Electrical Data, AS-i, Specification

Safety-Slave
Electrical data, AS-i, Version

V 3.0
Electrical data, Connector, AS-i, PIN 1

AS-Interface +
Electrical data, Connector, AS-i, PIN 2

n.c. (≤ 30 VDC)
Electrical data, Connector, AS-i, PIN 3

AS-Interface -
Electrical data, Connector, AS-i, PIN 4

n.c. (≤ 30 VDC)
Electrical Data, Device protection, AS-i

Internal short-circuit proof
Electrical data, Outputs, AS-i, DO 0 … DO 3

No Function
Note, Electrical data, AS-i, Input module address

Preset to address 0, can be changed through AS-interface bus
Note, Electrical data, AS-i, Parameter bits

Set the parameter outputs to "1111" (0xF)
FID: periphery error
Note, operating voltage, AS-i

Protection against polarity reversal
Note, rated operating voltage, ASi

Protection against polarity reversal
Number, Actuating directions

3
Review, Coding, AS-i, ID-Code

0xB
Review, Coding, AS-i, ID-Code1

0xF
Review, Coding, AS-i, ID-Code2

0xE
Review, Coding, AS-i, IO-Code

0x0
Voltage, Operating voltage, AS-i, maximum

31.6 VDC
Voltage, Operating voltage, AS-i, minimum

18 VDC
Voltage, rated operating voltage, ASi, maximum

31.6 VDC
Voltage, rated operating voltage, ASi, minimum

18.0 VDC
Voltage, type, ASi

DC

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
