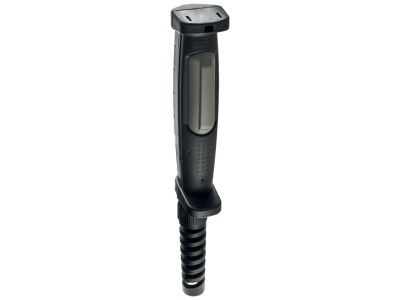

ZSD5CC-5M Machine safety accessory

ZSD5CC-5M
Thermoplastic enclosure
1 Cable entry M 20 x 1.5
Good resistance to oil and petroleum spirit
Particularly fit for robot applications in accordance with the ANSI Robotics Standard
The redundant contact configuration enables signal processing using conventional safety relay modules
Contacts do not close upon reset (level 3 -> level 1)
  • SKU
    4030661623375
  • Manufacturer code
    103043683
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661623375
  • SAP, product group
    Initial
  • SAP, gross weight
    1190.000 g
  • SAP, net weight
    1190.000 g
  • Web Type
    Product range
  • PNV, standard, certificates
    cULus
    TÜV
  • Note, General
    Customer-specific versions, with connecting cable, are avail
    The monitoring module must offer the possibility of cross-wi
    Only a double shielded cable is authorised as supply line.
    1) If the device is to be used in a damp room, a suitable co
    1) This device has been tested for impact and fire resistanc
  • Material, housing
    Plastic, thermoplastic, self-extinguishing
  • Temperature, Ambient temperature[generated product variant]
    -10 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -10 °C
  • Type of Execution, IP Protection class, General
    IP66
  • Type of electric connection
    Cage clamp
  • Voltage, type
    AC
  • Voltage, rated operating voltage
    250 VAC
  • Current, Rated operating current
    2500 mA
  • Voltage, rated operating voltage
    250 VAC
    250 VDC
  • Standard, standards
    EN IEC 60947-5-1
    EN ISO 13849-1
    EN IEC 60947-5-8
  • Type of application, Relative humidity, maximum
    85 %
  • Type of application, Relative humidity, minimum
    45 %
  • Current, Utilisation category AC-15, main contacts
    1.5 A
  • Current, Utilisation category AC-15, Auxiliary contacts
    1 A
  • Current, Utilisation category DC-13, Main contacts
    0.22 A
  • Current, Utilisation category DC-13, Auxiliary contacts
    0.22 A
  • Type of Execution, Cable entry
    1 x M20 x 1,5
  • Switching principle
    Slow action
  • Diameter, cable, permissible, maximum
    13 mm
  • Diameter, cable, permissible, minimum
    7 mm
  • Path, positive break travel
    4.7 mm
  • Electrical data, Cable section, maximum
    1.5 mm²
  • Electrical data, Cable section, minimum
    0.2 mm²
  • Electrical data, External wiring and device fuse rating
    10A f
  • Force, Positive break force, minimum Force,
    70 N
  • Note, Mechanical lifetime
    NO:
    Stage 1 - 2 - 1: 1,000,000 operations
    Stage 1
  • Note, Relative humidity
    non-condensing
  • Number, NC
    1
  • Number, NO contacts
    2
  • Recommended, Safety switchgear
    SRB, 2-channel with cross-wire detection
  • Type of switch function
    NO contact, NC contact
    NO contact / NC contact
  • Review, Resistance to vibrations to EN 60068-2-6
    Operation: 5 … 55 Hz, Amplitude 0,5 mm min./ Damage: 16,7 Hz
  • Review, restistance to shock
    Operation: 150 m/s², Damage: 1.000 m/s²
  • Safety parameters, B10d, Normally-closed contact  (NC),
    100000 Operations
  • Safety parameters, Category, EN ISO 13849
    3
  • Safety parameter
    EN IEC 61508
    EN ISO 13849-1
  • Safety parameters, Performance Level,
    d
  • Temperature, storage and transport temperature,[generated product variant]
    -40 ... +80 °C
  • Temperature, storage and transport temperature, maximum
    80 °C
  • Temperature, storage and transport temperature, minimum
    -40 °C
  • Time, Switching frequency
    1200 /h
  • Voltage, Rated impulse withstand voltage
    2.5 kV
  • Voltage, Utilisation category AC-15, Main contacts
    125 VAC
  • Voltage, Utilisation category AC-15, Auxiliary contacts
    125 VAC
  • Voltage, Utilisation category DC-13, main contacts
    125 VDC
  • Voltage, Utilisation category DC-13, Auxiliary contacts
    125 VDC

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal

Product attachments

file-28820-1d7852ff161c8dd9416ba3fd9ae16f1e.pdf (PDF, 809.43 kB)
