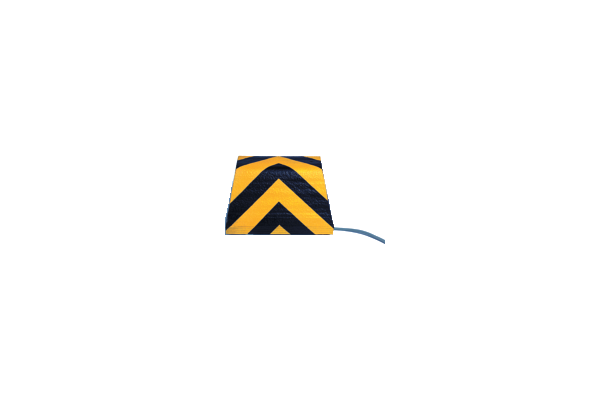

SSG-SB-L Machine safety accessory

SSG-SB-L
Robust design
dual channel system
Simple mounting
Up to 3000mm total length
Customized body-design
Kevlar skinning for demanding applications
  • Manufacturer code
    SSG-SBL
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    2
  • Type of Execution, IP Protection class, General
    IP54
  • Angle, Active switching area[generated product variant]
    -45 ... +45 °
  • Angle, Active switching area, maximum
    45 °
  • Angle, Active switching area, minimum
    -45 °
  • Diameter, Wire cross-section,
    0.34 mm<sup>2</sup>
  • Height, General, maximum
    300 mm
  • Height, General, minimum
    80 mm
  • Width, General, maximum
    3000 mm
  • Width, General, minimum
    200 mm
  • Force, Actuating force
    600 N
  • Force, permissible load
    3.35 N/mm<sup>2</sup>
  • Material, general
    PU flexible foam
  • Material, surface/surface material
    Polyurethane PUR
  • Standard, standards
    EN ISO 13856-3
    EN ISO 13849-1
  • Note, Force, Actuating Force
    With round body Ø 80mm
  • Note, Force, Admissable load
    With round body Ø 80mm
  • Note, General
    Special design on request
  • Note, Safety Parameters, PFH-value
    for max. 36,500 switching cycles/year and max. 60% contact l
  • Note, included in delivery, number and type
    Groove strips for fastening are included in scope of deliver
  • Number, Pre-wired cables
    1
  • Number, cable wires, electrical
    4
  • PIM maintenance status
    Technische Produktdaten pflegen
  • Recommended, Safety switchgear
    SRB 301ST
    SRB-E-301ST
  • Safety parameters, Category, EN ISO 13849
    3
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameters, Performance Level,
    d
  • Safety values, PFD value
    0.000000316 /h
  • Temperature, Ambient temperature[generated product variant]
    +0 ... +55 °C
  • Temperature, ambient temperature, maximum
    55 °C
  • Temperature, ambient temperature, minimum
    0 °C
  • Web Type
    Product range

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
