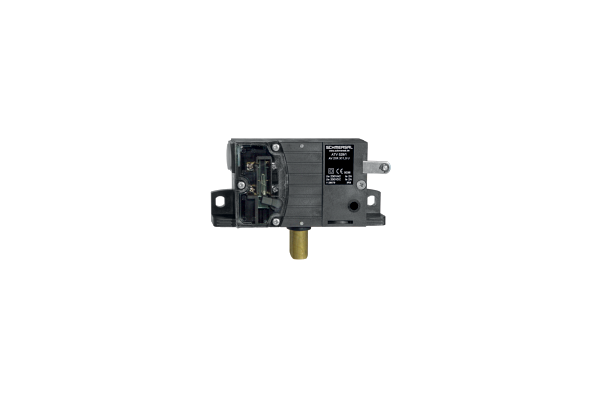

left-hand model
Thermoplastic enclosure
without Fail-safe locking system
for 1-leaf doors
for elevator plants without passenger transportation
Manual release by means of M5 triangular key

SKU

4030661524429
Manufacturer code

103028212
Current, Thermal test current

10 A
Current, Utilisation category AC-15

2 A
Current, Utilisation category DC-13

2 A
Type of Execution, Cable entry

without cable gland
Type of Execution, IP Protection class, General

IP54
Type of execution, mounting

rear-side mounting holes
Switching principle

Slow action
Depth, General

37.5 mm
Height, General

80 mm
Width, General

165 mm
Electrical data, Max. fuse rating

6 A (slow blow)
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN 81-20
EN 81-50
Number, Safety contacts

1
PIM maintenance status

Discharge "Online catalog"
Type of switch function

NC contact, NO contact
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661524429
SAP, product group

Initial
Temperature, Ambient temperature[generated product variant]

-15 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-15 °C
Voltage, rated insulation voltage

500 VAC
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

200 VDC
Web Type

Product range
Actuating element

Pull strap
Type of Execution,

left-hand model
Design, Bevelling, Latching bolt, Bottom

45 °
Diameter, Latching bolt

18 mm
Dimension, X-Dimension, Latching bolt

20 mm
Material, locking bolt

Brass
Note, X-Dimension latching bolt

The entire locking bolt length results from the prescribed i
Note, Choice (Yes/No), Manual release

For manual release using M5 triangular key, available as acc
Number, Door leafs

1
PNV, standard, certificates

CCC
TÜV
Voltage, Rated impulse withstand voltage

6 kV
Selection (Yes/No), Manual release

Yes
Selection (Yes/No), With fail-safe locking system

No
Selection (Yes/No), Safety functions

Yes
Number, Auxiliary contacts

1

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
