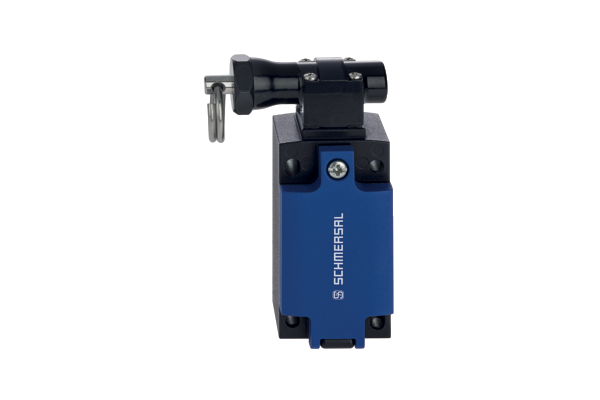

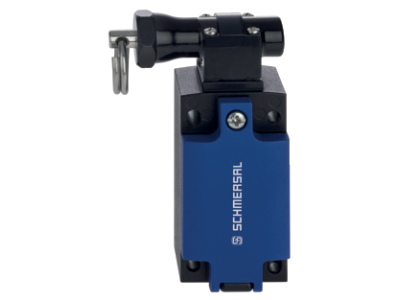

TQ315AL-11 Pull-wire switch

TQ315AL-11
Metal enclosure
Quick connection technology as connection terminals rotated by 45°
cable entry 1 x M20 x 1,5
Design to EN 50041
  • SKU
    4030661616704
  • Manufacturer code
    103044920
  • Current, Thermal test current
    10 A
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Electrical data, Cable section, maximum
    1.5 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Material, contacts, electrical
    Silver
  • Housing material
    Metal, zinc die-cast
  • Standard, standards
    EN IEC 60947-5-1
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
    CCC
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661616704
  • SAP, product group
    Initial
  • SAP, gross weight
    462.630 g
  • SAP, net weight
    462.630 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    300 VAC
  • Current, Required rated short-circuit current to EN 60947-5-1
    400 A
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    I
  • Height, General
    93.4 mm
  • Width, General
    40 mm
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Type of switch function
    1 NO contact, 1 NC contacts
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Web Type
    Product range
  • Current, Utilisation category AC-15
    3 A
  • Current, Utilisation category DC-13
    3 A
  • Length, wire, maximum
    25 m
  • Electrical data, Cable section, minimum
    0.34 mm²
  • Material, enclosure coating
    painted
  • Voltage, Utilisation category AC-15
    240 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Selection (Yes/No), CADENAS
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Type of application, Actuating direction
    left
  • Type of Execution, Actuator type DIN EN 50041
    B
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Housing construction form
    Norm construction design
  • Height, Actuator,
    21.4 mm
  • Length, General
    32.4 mm
  • Width, Actuator
    91 mm
  • Force, Positive break force, minimum Force,
    50 N
  • Web Produktneutheit (Datum bis)
    2023-12-31
  • Tightening torque, tightening torque, Electrical connection, maximum
    0.8 Nm
  • Torque, tightening torque, electrical connection, minimum
    0.6 Nm
  • Torque, tightening torque, screw, housing cover
    2.6 Nm
  • Torque, tightening torque, screw, mounting
    2 Nm

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
