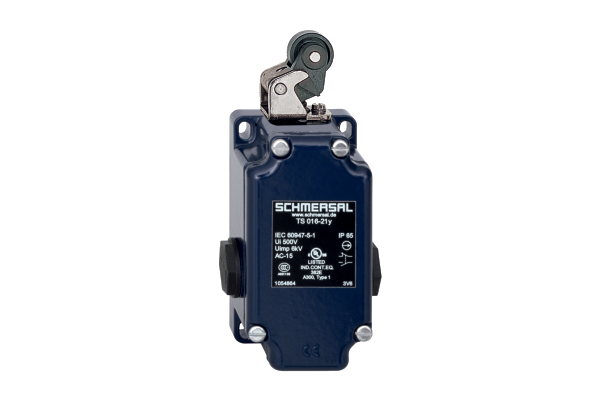

TK 016-03Y-H-U180-2322 Position switch

TK 016-03Y-H-U180-2322
3 Cable entry M 20 x 1.5
Metal enclosure
3 Contacts

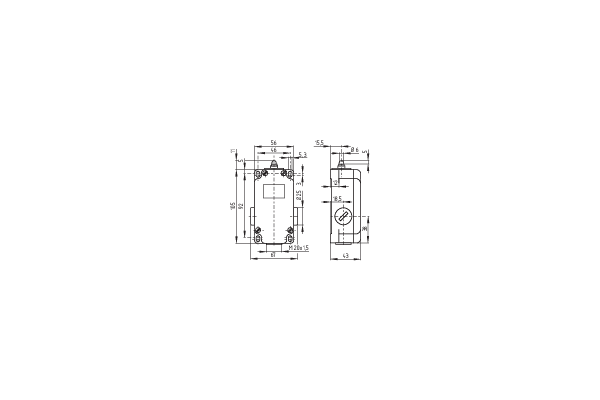

67 mm x 105 mm x 43 mm ( basic component)
Actuator heads can be repositioned by 4 x 90°
  • SKU
    8905236104107
  • Manufacturer code
    131148063
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    4 A
  • Type of Execution, Mechanical life, minimum,
    5000000 Operations
  • Switching principle
    Slow action with staggered contacts
  • Electrical data, Max. fuse rating
    20 A gG D-fuse
  • Electrical data, Utilisation category
    AC-15
  • Force, Actuating force
    19 N
  • Material, contacts, electrical
    Silver
  • Housing material
    Light-alloy diecast, paint finish
  • Standard, standards
    EN IEC 60947-5-1
  • Number, NC contacts
    3
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    8905236104107
  • SAP, product group
    Initial
  • SAP, gross weight
    396.040 g
  • SAP, net weight
    396.040 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Web Type
    Product range
  • Actuating element
    Offset roller lever
  • Type of Execution, IP Protection class, General
    IP65
  • Type of design, Form, Slide
    Castor
  • Diameter, Wire cross-section, AWG
    13 AWG
  • Distance, Contact opening
    2 x 2.5 mm
  • Height, Sensor
    143 mm
  • Length, Sensor
    43 mm
  • Width, Sensor
    67 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Material, enclosure coating
    painted
  • Movement, actuating speed, maximum
    0.5 m/s
  • Movement, actuating speed, minimum
    1 mm/min
  • Note, Design, Switching element
    with double break
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, General
    Actuation from the right should be avoided, since this reduc
  • Note, Motion, Actuating Speed
    Actuating speed with vertical actuating angle to switch axis
  • Type of switch function
    Opener (NC)
  • Voltage, rated insulation voltage
    400 V
  • Voltage, Utilisation category AC-15
    400 VAC
  • Actuating angle, from left of switch axis
    45 °
  • Actuating angle, from right of switch axis
    30 °
  • Diameter, Castor
    20 mm
  • Width, Castor
    8.5 mm
  • Material, Castor
    Plastic

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
