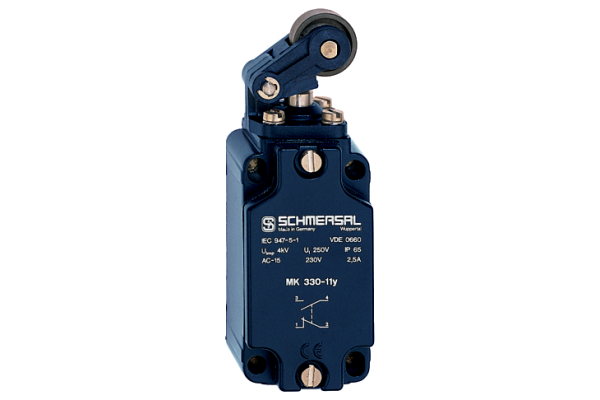

MK 330-11Y-RMS Position switch

MK 330-11Y-RMS
Actuator heads can be repositioned by 4 x 90°
Metal enclosure
Long life
40 mm x 76 mm x 40 mm ( basic component)
Suitable for low actuating speeds
1 Cable entry M 20 x 1.5
free of silicon
proved in power station applications
  • SKU
    8905236106408
  • Manufacturer code
    131054478
  • Current, Thermal test current
    6 A
  • Current, Utilisation category AC-15
    2.5 A
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Material, contacts, electrical
    Silver
  • Housing material
    Light-alloy diecast, paint finish
  • Standard, standards
    EN IEC 60947-5-1
  • PIM maintenance status
    New article
  • Review, restistance to shock
    50 g / 6 ms
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    8905236106408
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    255.940 g
  • SAP, net weight
    255.940 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Bounce duration, maximum
    1.5 ms
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Web Type
    Product range
  • Actuating element
    Offset roller lever
  • Type of Execution, IP Protection class, General
    IP65
  • Type of design, Form, Slide
    Castor
  • Diameter, Wire cross-section, AWG
    13 AWG
  • Height, Sensor
    113.5 mm
  • Length, Sensor
    40 mm
  • Width, Sensor
    40 mm
  • Material, enclosure coating
    painted
  • Movement, actuating speed, minimum
    1 mm/min
  • Note, General
    Actuation from the right should be avoided, since this reduc
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    230 VAC
  • Diameter, Castor
    18 mm
  • Width, Castor
    8.5 mm
  • Material, Castor
    Plastic
  • Selection (Yes/No), Traceparts
    Yes
  • Force, Actuating force, minimum
    19 N
  • Selection (Yes/No), CADENAS
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
