MA 471-12/12Y Position switch

MA 471-12/12Y
Metal enclosure
4 or 6 Contacts

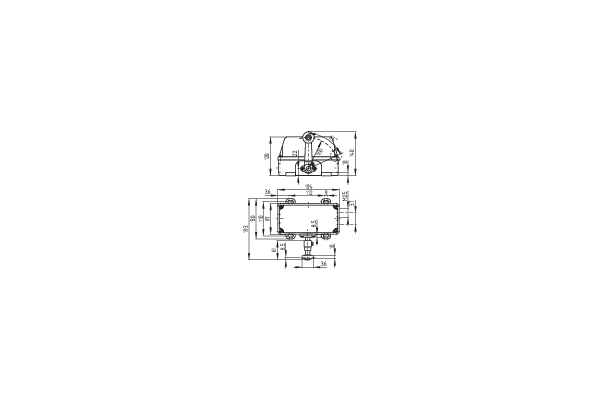

194 mm x 123 mm x 130 mm (basic component)
3 cable entries M 25 x 1.5
Continuous adjustment of lever position 360°
  • SKU
    4030661059556
  • Manufacturer code
    101061198
  • Current, Thermal test current
    25 A
  • Current, Utilisation category AC-15
    10 A
  • Type of Execution, Mechanical life, minimum,
    30000 Operations
  • Switching principle
    Snap action
  • Electrical data, Max. fuse rating
    25 A gG D-fuse
  • Electrical data, Utilisation category
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Grey cast iron, galvanised
  • Standard, standards
    EN IEC 60947-5-1
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661059556
  • SAP, product group
    Initial
  • SAP, gross weight
    5531.410 g
  • SAP, net weight
    5531.410 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Switching frequency
    1000 /h
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Web Type
    Product range

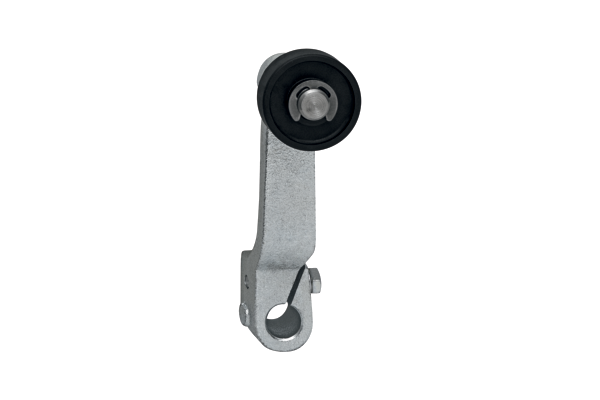

  • Actuating element
    Roller lever
  • Type of Execution, IP Protection class, General
    IP65
  • Type of design, Form, Slide
    Castor
  • Diameter, Wire cross-section, AWG
    11 AWG
  • Distance, Contact opening
    2 x 4 mm
  • Height, Sensor
    143 mm
  • Length, Sensor
    190 mm
  • Width, Sensor
    194 mm
  • Electrical data, Cable section, maximum
    4 mm²
  • Material, enclosure coating
    painted
  • Movement, actuating speed, maximum
    3 m/s
  • Movement, actuating speed, minimum
    0.05 mm/min
  • Note, Design, Switching element
    galvanically separated contact bridges
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, Motion, Actuating Speed
    Actuating speed with vertical actuating angle to switch axis
  • Type of switch function
    NO contact / NC contact
  • Voltage, rated insulation voltage
    500 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Actuating angle, from left of switch axis
    30 °
  • Actuating angle, from right of switch axis
    30 °
  • Diameter, Castor
    36 mm
  • Width, Castor
    9 mm
  • Material, Castor
    Plastic
  • Electrical data, Cable section, minimum
    1.5 mm²
  • Type of application, Actuating direction
    each time 60° right-hand side and left-hand side rotation
  • Number, NO, left
    1
  • Number, NO, right
    1
  • Number, NC, left
    2
  • Number, NC, right
    2
