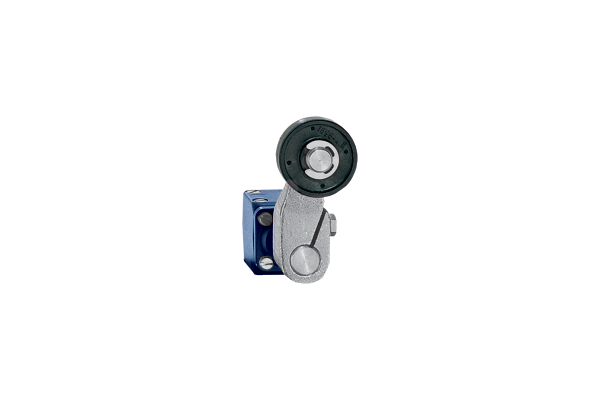

TL 461-30Y Position switch

TL 461-30Y
2 cable entries M 20 x 1.5
Metal enclosure
118 mm x 155 mm x 64 mm ( basic component)
Actuator head can be repositioned in steps 4 x 90°
Continuous adjustment of lever position 360°
Lever can be transposed by 180°
In temperature-resistant version, the roller can be mounted in two different positions on the shaft
  • Manufacturer code
    101059423
  • Current, Thermal test current
    16 A
  • Current, Utilisation category AC-15
    4 A
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Switching principle
    Slow action
  • Electrical data, Max. fuse rating
    16 A gG D-fuse
  • Electrical data, Utilisation category
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Grey cast iron, galvanised
  • Standard, standards
    EN IEC 60947-5-1
  • Number, NO contacts
    3
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, product group
    Product group 1
  • SAP, gross weight
    2320.000 g
  • SAP, net weight
    2320.000 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Web Type
    Product range
  • Actuating element
    Roller lever
  • Type of Execution, IP Protection class, General
    IP65
  • Type of design, Form, Slide
    Castor
  • Diameter, Wire cross-section, AWG
    13 AWG
  • Distance, Contact opening
    max. 2 x 6 mm
  • Height, Sensor
    248 mm
  • Length, Sensor
    64 mm
  • Width, Sensor
    118 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Material, enclosure coating
    painted
  • Movement, actuating speed, maximum
    3 m/s
  • Movement, actuating speed, minimum
    1 mm/min
  • Note, Design, Switching element
    with double break
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, Motion, Actuating Speed
    Actuating speed with vertical actuating angle to switch axis
  • Type of switch function
    Normally open contact (NO)
  • Voltage, rated insulation voltage
    400 V
  • Voltage, Utilisation category AC-15
    400 VAC
  • Actuating angle, from left of switch axis
    30 °
  • Actuating angle, from right of switch axis
    30 °
  • Diameter, Castor
    36 mm
  • Width, Castor
    9 mm
  • Material, Castor
    Plastic
  • Electrical data, Cable section, minimum
    1.5 mm²
