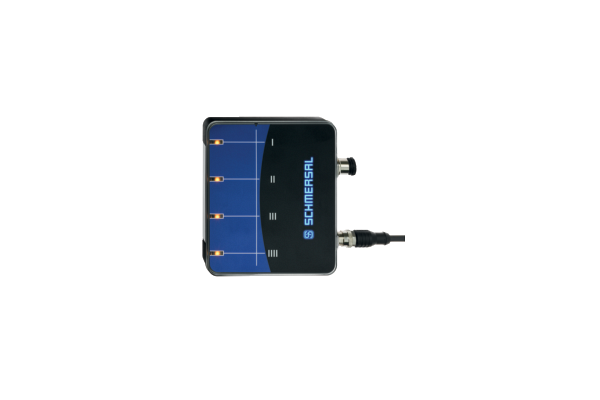

SSB-R-NG-2-O-S-V01 Magnetic Reed switch

SSB-R-NG-2-O-S-V01
With secondary connector for signal distribution and track-related wire break monitoring
Magnetic track sensor box
4 tracks, 2 optional for fine positioning
optional fine positioning tracks with prewarning indication
Maintenance-free signal storage and switching in case of power failure
Wide angle LED track display
  • SKU
    4030661566429
  • Manufacturer code
    103038395
  • Type of execution, Actuating element
    Magnet
  • Type of Execution, IP Protection class, General
    IP65
    IP54
  • Type of Execution, Mechanical life, minimum,
    1000000000 Operations
  • Type of Execution, Switching output, Digital output, electric
    Reed contacts
  • Height, Sensor
    24.4 mm
  • Length, Sensor
    125 mm
  • Width, Sensor
    110 mm
  • Housing material
    Plastic, glass-fibre-reinforced
  • PIM maintenance status
    Discharge "Online catalog"
  • Power, switching capacity, maximum
    7.2 W
  • Type of switch function
    bistable contact
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661566429
  • SAP, product group
    Initial
  • SAP, gross weight
    336.280 g
  • SAP, net weight
    336.280 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Bounce duration, maximum
    0.3 ms
  • Web Type
    Product range
  • Type of application, Actuating panel
    front side
  • Type of execution, mounting
    rear with 2 threaded bolts
  • Distance, Repeat accuracy R R
    0.5 mm
  • Movement, actuating speed, maximum
    9 m/s
  • Notice, Switch distance Sn
    Recommended 7mm
  • PNV, standard, certificates
    UL
  • Recommendation, actuator
    BP 15
    BP 15/2
  • Recommendation, Actuator, Lift switchgear
    BP 15
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Selection (Yes/No),
    Yes
  • Number, Snap-in contacts
    4
  • Selection (Yes/No), latching
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Type of application, Actuating direction
    On when driving over with north magnet in driving direction
  • Type of application, Relative humidity, maximum
    95 %
  • Coding, Connector, Side A
    A
  • Current, consumption at 24V, minimum
    11 mA
  • Current, output current, maximum
    300 mA
  • Current, Rated operating current
    1500 mA
  • Current, Utilisation category DC-12
    0.3 A
  • Current, Utilisation category DC-13
    0.3 A
  • Type of Execution, Terminals, mechanical
    Connector plug M12, 8-pole, A-coded
  • Type of Execution, Connector, Bolting device, Side A
    Screw locking
  • Type of Execution, Connector enclosure, Side A
    Male connector, M12
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    3
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of execution, mounting, Screws
    2x M4
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Switching principle
    Reed contacts, Non-contact principle
  • Distance, minimum distance between devices
    50 mm
  • Height, permissible installation height above sea level, maximum
    2000 m
  • Area, switch distance, maximum
    15 mm
  • Area, switch distance, minimum
    2 mm
  • Electrical data, Fuse rating, Current, External devices, maximum
    2 A
  • Material, housing cover
    Polycarbonate
  • Web Produktneutheit (Datum bis)
    2022-12-31
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, LED's
    5
  • Number, Signalling outputs
    1
  • Temperature, storage and transport temperature,[generated product variant]
    -40 ... +85 °C
  • Temperature, storage and transport temperature, maximum
    85 °C
  • Temperature, storage and transport temperature, minimum
    -40 °C
  • Tolerance, operating voltage, DC, maximum
    10 %
  • Tolerance, operating voltage, DC, minimum
    15 %
  • Torque, tightening torque, screw, mounting, maximum
    4 Nm
  • Torque, tightening torque, screw, mounting, minimum
    2 Nm
  • Voltage, Rated impulse withstand voltage
    1 kV
  • Voltage, rated insulation voltage
    32 VDC
  • Voltage, rated operating voltage
    24 VDC
  • Voltage, Utilisation category DC-12
    24 VDC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Selection (Yes/No), CADENAS
    Yes
  • Coding, Connector, Side B
    A
  • Type of Execution, Connector, Bolting device, Side B
    Screw locking
  • Type of Execution, Connector enclosure, Side B
    Female connector, M12
  • Selection, (Yes/No), Wire breakage detection
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
