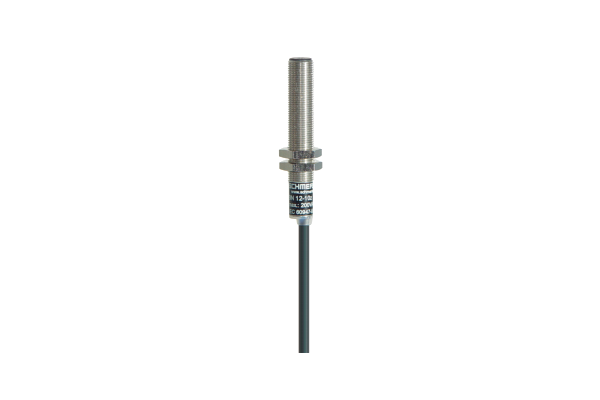

BN 12-RZ/V Magnetic Reed switch

BN 12-RZ/V
Actuation from front
With pre-wired cable
with bias magnet
Non-contact principle
Long life
Metal enclosure
Actuating distance up to 60 mm depending on actuating magnet and version
Design Ø 10.7 mm
with central mounting
  • SKU
    4030661335360
  • Manufacturer code
    101186837
  • Current, Switching current, maximum
    1 A
  • Type of execution, Actuating element
    Magnet
  • Construction type housing
    Cylinder, thread
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Type of Execution, Switching output, Digital output, electric
    Reed contacts
  • Length, Sensor
    71 mm
  • Housing material
    Metal film
  • Note, General
    The opening and closing functions depend on the direction of
    When the switches and actuators come together, the colours m
    The switch is to be mounted on iron with a non-magnetic laye
  • PIM maintenance status
    Discharge "Online catalog"
  • Power, switching capacity, maximum
    30 VA
  • Power, switching capacity, maximum
    30 W
  • Type of switch function
    bistable contact
  • Type of electric connection
    Cable
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661335360
  • SAP, product group
    Initial
  • SAP, gross weight
    50.500 g
  • SAP, net weight
    50.500 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Bounce duration, maximum
    0.15 ms
  • Voltage, Switching voltage, VAC, maximum
    200 VAC
  • Web Type
    Product range
  • Type of application, Actuating panel
    front side
  • Type of execution, mounting
    central with threated flange M12 x 1
  • Diameter, Wire cross-section, AWG
    23 AWG
  • Diameter, Wire cross-section,
    0.25 mm<sup>2</sup>
  • Diameter, Sensor
    10.7 mm
  • Distance, Repeat accuracy R R
    0.25 mm
  • Cable length
    1 m
  • Material, cable mantle
    LiYY
  • Movement, actuating speed, maximum
    18 m/s
  • Notice, Switch distance Sn
    Actuating distance up to 45 mm depending on actuating magnet
  • Number, cable wires, indication with cable cross-section, electrical
    2
  • Recommendation, actuator
    2x BP 10
    BP 34
    BP 20
    BP 31
    BP 11
    BP 12
    BP 21
    BP 22 S
    BP 22 N
    BE 20
  • Recommendation, Actuator, Lift switchgear
    BP 10
    BP 15
    2 x BP 10
    BP 34
  • Review, area, switch distance Sn
    3 mm … 45 mm
    2 x BP 10 = 3 mm
    BP 34 = 15 mm
    BP 20 = 10 mm
    BP 31 = 10 mm
    BP 11 = 15 mm
    BP 12 = 20 mm
    BP 21 = 45 mm
    BP 22 N = 35 mm
    BP 22 S = 35 mm
    BE 20 = 10 mm
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Time, Switching frequency, maximum
    300 Hz
  • Selection (Yes/No), Bias magnet
    Yes
  • Selection (Yes/No),
    Yes
  • Number, Snap-in contacts
    1
  • Selection (Yes/No), latching
    Yes
