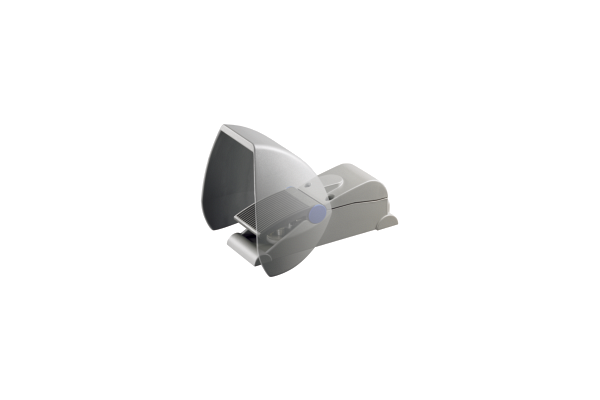

TFH 232-02f Foot switch

TFH 232-02f
with start/stop function
2 Contacts
Protective shield with wide opening
Also available as safety foot switch
Low operating height of pedal
Cable entry M 20 x 1.5
High level of stability
Metal enclosure
single-pedal types
  • SKU
    4030661529196
  • Manufacturer code
    151193398
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Housing material
    Aluminium
  • Pedal material
    Glass-fibre, reinforced thermoplastic
  • Standard, standards
    EN IEC 60947-5-1
    DIN VDE 0660-200
    BG-GS-ET-15
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661529196
  • SAP, product group
    Initial
  • SAP, gross weight
    1620.000 g
  • SAP, net weight
    1620.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    1 A
  • Depth, General
    274 mm
  • Height, General
    189 mm
  • Width, General
    170 mm
  • Electrical data, Cable section, maximum
    1 x 2.5 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, enclosure coating
    powder-coated
  • Material, housing cover
    Aluminium
  • Material, protective shield
    Aluminium
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • PNV, standard, certificates
    CCC
    cULus
  • Type of switch function
    Opener (NC)
  • Type of Connection
    Screw terminals M20 x 1.5
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Voltage, rated insulation voltage
    500 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Selection (Yes/No), Probing possible
    Yes
  • Protective shield
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Colour, housing
    RAL 9006 (White aluminum)
  • Number, NC contacts
    2
  • Selection (Yes/No), CADENAS
    Yes
  • Note, General
    The start/stop function is exclusively available with one sw
  • Selection (Yes/No), Bi-stable electrical contact
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal

Product attachments

file-29793-a0c1324474e8df3beef0b06de3374775.pdf (PDF, 412.81 kB)
