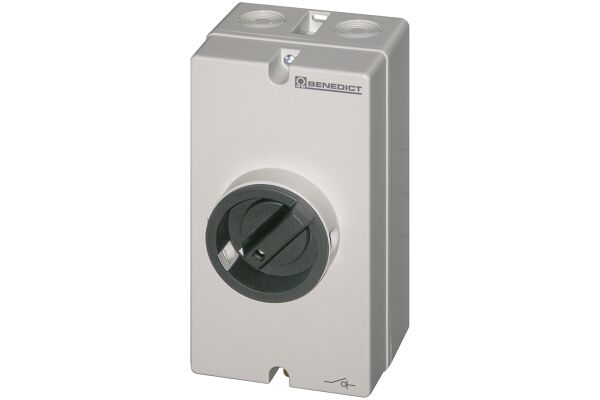

LS40 PFLH4 A4

DC-Disconnector 40A/1000VDC with enclosure IP66/67 4-pole, lockable

SKU

9005738864512
Manufacturer code

LS40 PFLH4 A4
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0
Number of auxiliary contacts as change-over contact

0
Rated operation power at AC-3, 400 V

0 kW
Type of electric connection

Screw connection
Version as main switch

true
Version as maintenance-/service switch

false
Version as safety switch

true
Version as emergency stop installation

false
Version as reversing switch

false
Max. rated operation voltage Ue AC

440 V
Rated operating voltage

300 - 1500 V
Rated permanent current Iu

40 A
Rated permanent current at AC-21, 400 V

40 A
Rated short-time withstand current lcw

0 kA
Rated operation power at AC-23, 400 V

0 kW
Switching power at 400 V

0 kW
Conditioned rated short-circuit current Iq

10 kA
Number of poles

4
Motor drive optional

false
Motor drive integrated

false
Voltage release optional

false
Construction type housing

Complete device in housing
Suitable for ground mounting

true
Suitable for front mounting 4-hole

false
Suitable for front mounting center

false
Suitable for distribution board installation

false
Suitable for intermediate mounting

false
Colour control element

Black
Type of execution

Other
Interlockable

true
Degree of protection (IP), front side

IP66

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Benedict
