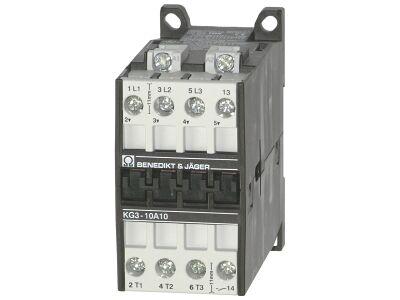

KG3-22A00-40 60 Contactor 11kW/AC3, 4-pole, Coil 60V= DC, Coil power consumption 3W

KG3-22A00-40 60

Contactor 11kW/AC3/400V 4-pole, Coil 60V= DC, Coil power consumption 3W inrush/sealed, Ambient temperature rating from -40°C till +90°C

  • SKU
    9005738972361
  • Manufacturer code
    KG3-22A00-40 60
  • Rated control supply voltage Us at AC 50HZ
    0 - 0 V
  • Rated control supply voltage Us at AC 60HZ
    0 - 0 V
  • Rated control supply voltage Us at DC
    60 - 60 V
  • Voltage type for actuating
    DC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    32 A
  • Rated operation current Ie at AC-3, 400 V
    22 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Rated operation current Ie at AC-4, 400 V
    22 A
  • Rated operation power Ie at AC-4, 400 V
    11 kW
  • Modular version
    true
  • Type of electric connection
    Screw connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    4
