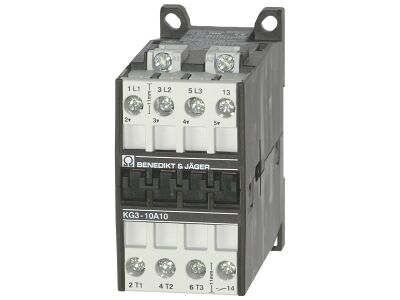

KG3-07D40 24 Contactor relay 4NO, Coil 24V= DC, Coil power consumption 3W

KG3-07D40 24

Contactor relay 4NO, Coil 24V= DC, Coil power consumption 3W inrush/sealed, ambient temperature rating from -40°C till +90°C, selfcleaning doublecontacts suitable for electronic circuits - 17V, 5mA

  • SKU
    9005738012487
  • Manufacturer code
    KG3-07D40 24
  • Rated control supply voltage Us at AC 50HZ
    0 - 0 V
  • Rated control supply voltage Us at AC 60HZ
    0 - 0 V
  • Rated control supply voltage Us at DC
    24 - 24 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie , 400 V
    2 A
  • Connection type auxiliary circuit
    Screw connection
  • Mounting method
    DIN-rail/screw
  • Interface
    false
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    4
  • Number of auxiliary contacts as normally closed contact, delayed switching
    0
  • Number of auxiliary contacts as normally open contact, leading
    0
  • With LED indication
    false
  • Number of auxiliary contacts as change-over contact
    0
  • Manual operation possible
    false
