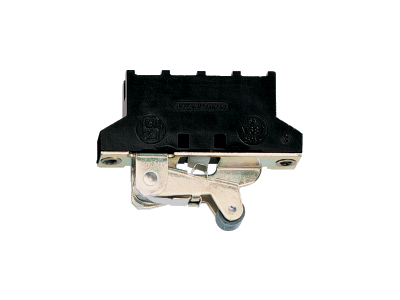

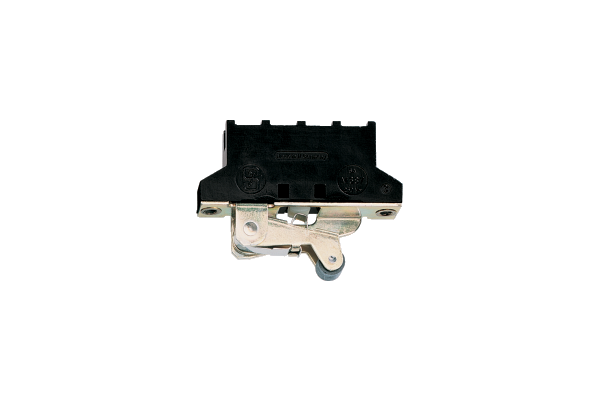

M 687-11-1-8R-I Micro switch

M 687-11-1-8R-I
screw or spade terminals
Thermoplastic enclosure
  • SKU
    4030661004198
  • Manufacturer code
    101085741
  • Current, Thermal test current
    6 A
  • Type of Execution, IP Protection class, General
    IP40
  • Switching principle
    Snap action with self-cleaning contact
  • Electrical data, Utilisation category
    AC-15
  • Material, contacts, electrical
    Gold-plated silver (AgNi 15 + Au 0,3µm)
  • Housing material
    thermosetting resin
  • Standard, standards
    EN IEC 60947-5-1
  • Number, NC contacts
    1
  • Number, NO contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661004198
  • SAP, product group
    Initial
  • SAP, gross weight
    43.000 g
  • SAP, net weight
    43.000 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +120 °C
  • Temperature, ambient temperature, maximum
    120 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Web Type
    Product range
  • Current, Utilisation category AC-15
    2.5 A
  • Type of Execution, for degree of pollution VDE 0100
    2
  • Type of Execution, IP Protection class, clips or terminals
    IP00 (without connector)
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Diameter, Wire cross-section,
    2.5 mm<sup>2</sup>
  • Distance, Contact opening
    2 x 0.5 mm
  • Distance, Repeat accuracy, Switching point
    0.02 mm
  • Electrical data, Max. fuse rating
    10 A gL/gG D-fuse
  • Force, Actuating force
    4 N
  • Force, Ejection force, minimum
    0.8 N
  • Material, actuator
    Thermoplastic
  • Material, housing cover
    Glass-fibre, thermoplastic
  • Movement, actuating speed, minimum
    1 mm/min
  • PNV, standard, certificates
    CCC
  • Time, Bounce duration, maximum
    1.5 ms
  • Time, Switching frequency
    10000 /h
  • Time, Switchover time, maximum
    10 ms
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    230 VAC

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
