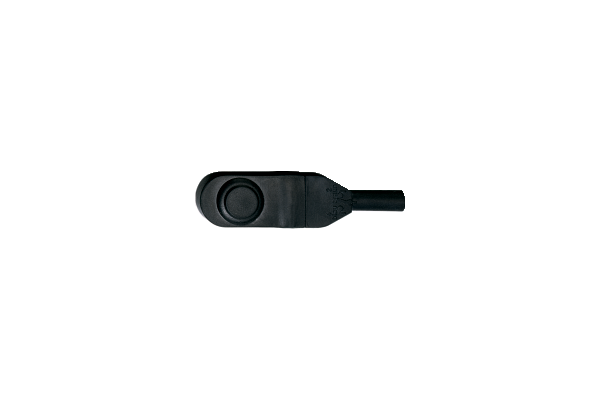

M 660-11-2-Y

without mounting flange
Rubber enclosure
soldering terminals and spade terminals
Metal coating

SKU

4030661004464
Manufacturer code

101055321
Current, Thermal test current

4 A
Type of Execution, IP Protection class, General

IP20
Switching principle

Snap action with self-cleaning contact
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Gold-plated silver (AgNi 15 + Au 0,3µm)
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Technische Produktdaten vollständig für Ausleitung
Type of electric connection

Plug-in terminal
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661004464
SAP, product group

Initial
SAP, gross weight

11.519 g
SAP, net weight

11.519 g
Temperature, Ambient temperature[generated product variant]

-30 ... +120 °C
Temperature, ambient temperature, maximum

120 °C
Temperature, ambient temperature, minimum

-30 °C
Web Type

Product range
Current, Utilisation category AC-15

1 A
Type of Execution, Mechanical life, minimum,

3000000 Operations
Diameter, Wire cross-section,

0.75 mm<sup>2</sup>
Distance, Contact opening

2 x 0.5 mm
Electrical data, Max. fuse rating

4 A gG D-fuse
Force, Actuating force

2.5 N
Force, Ejection force, minimum

1.3 N
Movement, actuating speed, minimum

1 mm/min
Time, Switching frequency

10000 /h
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15

230 VAC
Type of application, Terminal designation

H05VV-F
Electrical data, Cable section, maximum

2.5 mm²

Manufacturer Schmersal
