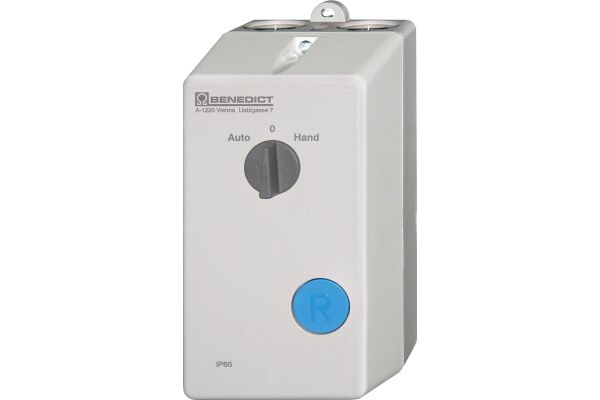

DOL starter with selector switch 11kW/AC3, Coil 380-415V 50Hz 415-440V 60Hz, without overload relay

SKU

9005738955777
Manufacturer code

P1W22 400
Kind of motor starter

Direct starter
With short-circuit release

false
Rated control supply voltage Us at AC 50HZ

380 - 415 V
Rated control supply voltage Us at AC 60HZ

400 - 460 V
Rated control supply voltage Us at DC

0 - 0 V
Voltage type for actuating

AC
Rated operation power at AC-3, 230 V, 3-phase

6 kW
Rated operation power at AC-3, 400 V

11 kW
Rated power, 460 V, 60 Hz, 3-phase

12 kW
Rated power, 575 V, 60 Hz, 3-phase

10 kW
Rated operation current Ie

32 A
Rated operation current at AC-3, 400 V

22 A
Overload release current setting

0.12 - 30 A
Rated conditional short-circuit current, type 1, 480 Y/277 V

0 A
Rated conditional short-circuit current, type 1, 600 Y/347 V

0 A
Rated conditional short-circuit current, type 2, 230 V

0 A
Rated conditional short-circuit current, type 2, 400 V

0 A
Number of auxiliary contacts as normally open contact

1
Number of auxiliary contacts as normally closed contact

0
Ambient temperature, , upper operating limit

40 °C
Temperature compensated overload protection

false
Release class

CLASS 10
Type of electrical connection of main circuit

Screw connection
Type of electrical connection for auxiliary- and control current circuit

Screw connection
Rail mounting possible

false
Degree of protection (IP)

IP65

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Benedict
