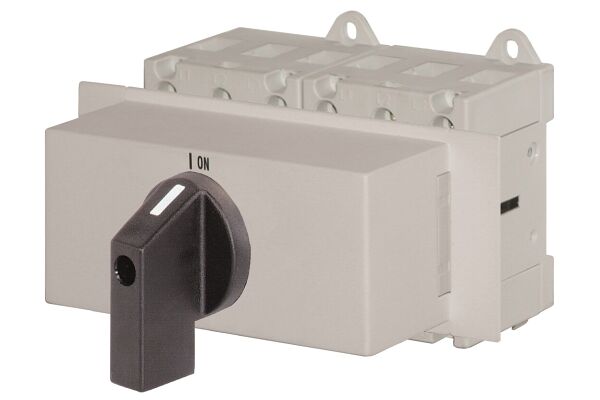

LTS80 SMA A6 ON-OFF switch 80A DIN-rail Mount 6-pole

LTS80 SMA A6

ON-OFF switch 80A DIN-rail Mount 6-pole

  • SKU
    9005738235343
  • Manufacturer code
    LTS80 SMA A6
  • Version as main switch
    true
  • Version as maintenance-/service switch
    false
  • Version as safety switch
    true
  • Version as emergency stop installation
    false
  • Version as reversing switch
    false
  • Max. rated operation voltage Ue AC
    690 V
  • Rated operating voltage
    220 - 690 V
  • Rated permanent current Iu
    80 A
  • Rated permanent current at AC-21, 400 V
    80 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Rated short-time withstand current lcw
    3 kA
  • Rated operation power at AC-23, 400 V
    22 kW
  • Switching power at 400 V
    22 kW
  • Conditioned rated short-circuit current Iq
    10 kA
  • Number of poles
    6
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive optional
    false
  • Motor drive integrated
    false
  • Voltage release optional
    false
  • Construction type housing
    Built-in device fixed built-in technique
  • Suitable for ground mounting
    true
  • Suitable for front mounting 4-hole
    false
  • Suitable for front mounting center
    false
  • Suitable for distribution board installation
    true
  • Suitable for intermediate mounting
    false
  • Colour of the operating element
    Black
  • Type of control element
    Short thumb-grip
  • Interlockable
    false
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (IP), front side
    IP40

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Benedict
