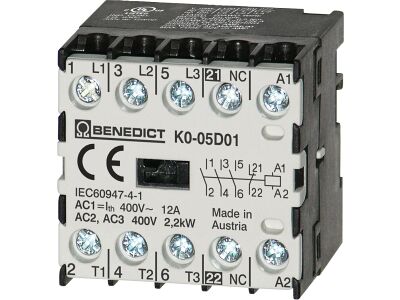

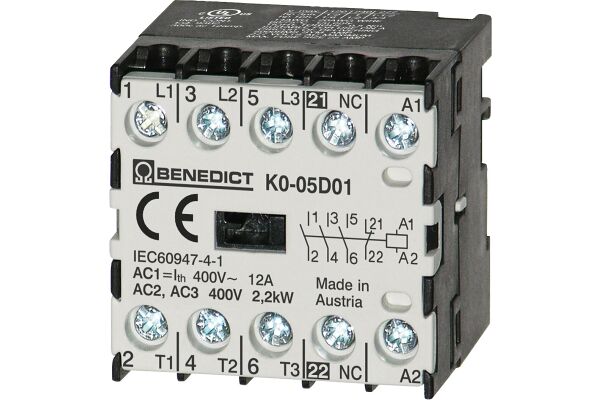

K0-05D01= 5 Micro contactor 2,2kW/AC3, 3-pole, 1NC, Coil 5V= DC

K0-05D01= 5

Micro contactor only 35x33x35mm! 2,2kW/AC3/400V, 3-pole, 1NC, Coil 5V= DC, aux. contacts suitable for electronic circuits - 17V= 5mA, Ambient temperature rating from -40°C till +60°C

  • SKU
    9005738824851
  • Manufacturer code
    K0-05D01= 5
  • Rated control supply voltage Us at AC 50HZ
    0 - 0 V
  • Rated control supply voltage Us at AC 60HZ
    0 - 0 V
  • Rated control supply voltage Us at DC
    5 - 5 V
  • Voltage type for actuating
    DC
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    12 A
  • Rated operation current Ie at AC-3, 400 V
    5 A
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Rated operation current Ie at AC-4, 400 V
    3.5 A
  • Rated operation power Ie at AC-4, 400 V
    1.5 kW
  • Modular version
    true
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Benedict
