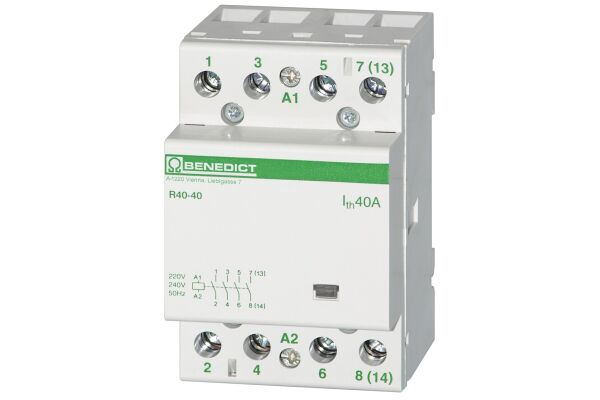

R40-40 24 Modular contactor LOW NOISE 40A 4NO, Coil 24VAC 50Hz

R40-40 24

Installation contactor for distribution board LOW NOISE 40A 4-pole 4NO, Coil 24V 50/60Hz, maximum switchable lamp loads!

  • SKU
    9005738652119
  • Manufacturer code
    R40-40 24
  • Degree of protection (IP)
    IP40
  • Rated operating voltage
    440 - 440 V
  • Rated operation current
    40 A
  • Utility category
    1
  • Rated excitation voltage
    24 - 24 V
  • Voltage type (operating voltage)
    AC
  • Voltage type (excitation voltage)
    AC
  • Number, NO contacts
    4
  • Number, NC contacts
    0
  • Max. incandescent lamp load
    6000 W
  • Max. load fluorescent lamp
    2975 VA
  • Max. load fluorescent lamp (Duo circuit)
    5280 VA
  • Max. load fluorescent lamp (parallel compensated)
    2805 VA
  • Slider for hand switch
    false
  • Number of modular spacings
    3
  • Built-in depth
    60 mm
  • Additional equipment possible
    true
