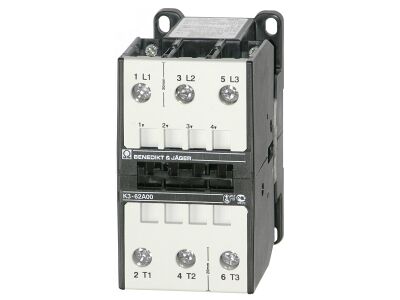

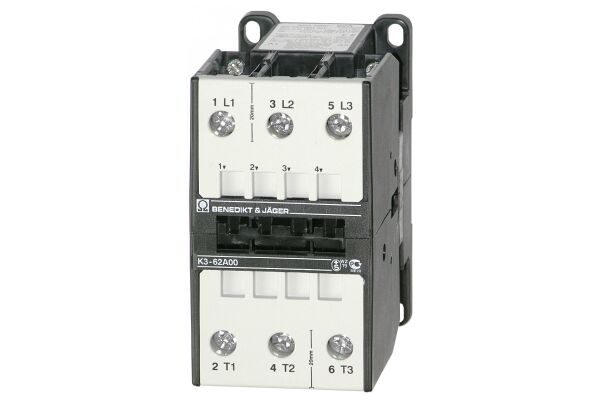

K3-62A00 24 Contactor 30kW/AC3, 3-pole, Coil 24VAC 50Hz

K3-62A00 24

Contactor 30kW/AC3/400V 3-pole, Coil 24V 50/60Hz, ambient temperature rating from -40°C till +90°C, smallest sizes at maximum performance!

  • SKU
    9005738833235
  • Manufacturer code
    K3-62A00 24
  • Rated control supply voltage Us at AC 50HZ
    22 - 24 V
  • Rated control supply voltage Us at AC 60HZ
    24 - 27 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    120 A
  • Rated operation current Ie at AC-3, 400 V
    62 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Rated operation current Ie at AC-4, 400 V
    62 A
  • Rated operation power Ie at AC-4, 400 V
    30 kW
  • Modular version
    true
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3
