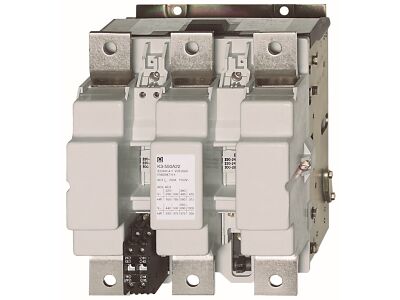

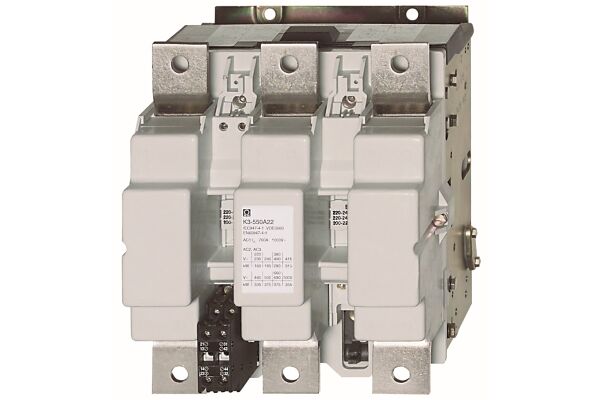

K3-550A22 230 Contactor 300kW/AC3, 3-pole, 2NO+2NC, Coil 230VAC/220=VDC

K3-550A22 230

Contactor 300kW/AC3/400V 3-pole, 2NO+2NC, Coil 220-240V 50/60Hz 200-220V= DC

  • SKU
    9005738182869
  • Manufacturer code
    K3-550A22 230
  • Rated control supply voltage Us at AC 50HZ
    220 - 240 V
  • Rated control supply voltage Us at AC 60HZ
    220 - 240 V
  • Rated control supply voltage Us at DC
    220 - 220 V
  • Voltage type for actuating
    AC/DC
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of auxiliary contacts as normally open contact
    2
  • Rated operation current Ie at AC-1, 400 V
    760 A
  • Rated operation current Ie at AC-3, 400 V
    550 A
  • Rated operation power at AC-3, 400 V
    300 kW
  • Rated operation current Ie at AC-4, 400 V
    180 A
  • Rated operation power Ie at AC-4, 400 V
    90 kW
  • Modular version
    false
  • Type of electrical connection of main circuit
    Cable clamp
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3
