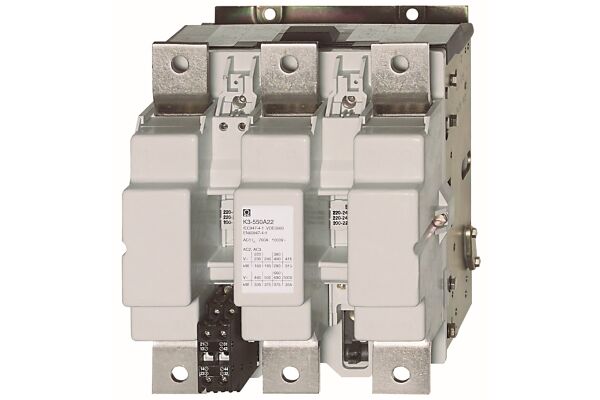

K3-450A22 400 Contactor 250kW/AC3, 3-pole, 2NO+2NC, Coil 400VAC 50Hz

K3-450A22 400

Contactor 250kW/AC3/400V 3-pole, 2NO+2NC, Coil 380-415V 50/60Hz

  • SKU
    9005738810076
  • Manufacturer code
    K3-450A22 400
  • Rated control supply voltage Us at AC 50HZ
    380 - 415 V
  • Rated control supply voltage Us at AC 60HZ
    380 - 415 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of auxiliary contacts as normally open contact
    2
  • Rated operation current Ie at AC-1, 400 V
    700 A
  • Rated operation current Ie at AC-3, 400 V
    450 A
  • Rated operation power at AC-3, 400 V
    250 kW
  • Rated operation current Ie at AC-4, 400 V
    150 A
  • Rated operation power Ie at AC-4, 400 V
    75 kW
  • Modular version
    false
  • Type of electrical connection of main circuit
    Cable clamp
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3
