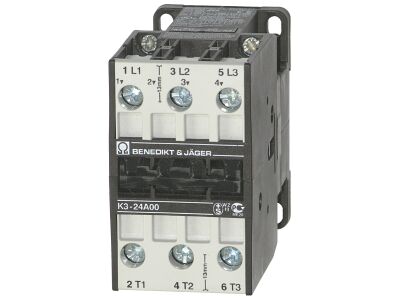

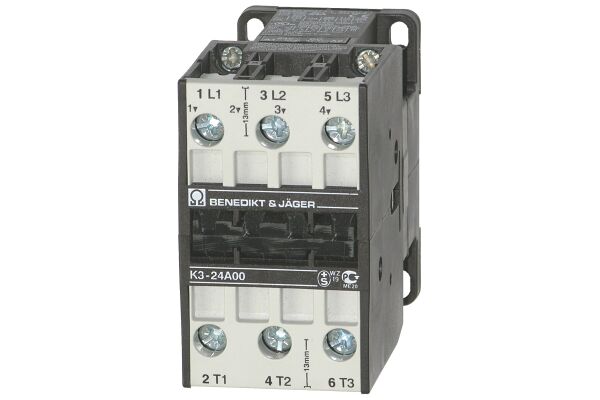

K3-32A00EUR 110 Contactor 15kW/AC3, 3-pole, Coil 110VAC 50Hz

K3-32A00EUR 110

Contactor 15kW/AC3/400V 3-pole, Coil 110V 50Hz 110-120V 60Hz, ambient temperature rating from -40°C till +90°C, smallest sizes at maximum performance!, Coil connections top & bottom

  • SKU
    9005738236814
  • Manufacturer code
    K3-32A00EUR 110
  • Rated control supply voltage Us at AC 50HZ
    100 - 110 V
  • Rated control supply voltage Us at AC 60HZ
    110 - 122 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    65 A
  • Rated operation current Ie at AC-3, 400 V
    32 A
  • Rated operation power at AC-3, 400 V
    15 kW
  • Rated operation current Ie at AC-4, 400 V
    32 A
  • Rated operation power Ie at AC-4, 400 V
    15 kW
  • Modular version
    true
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Benedict
